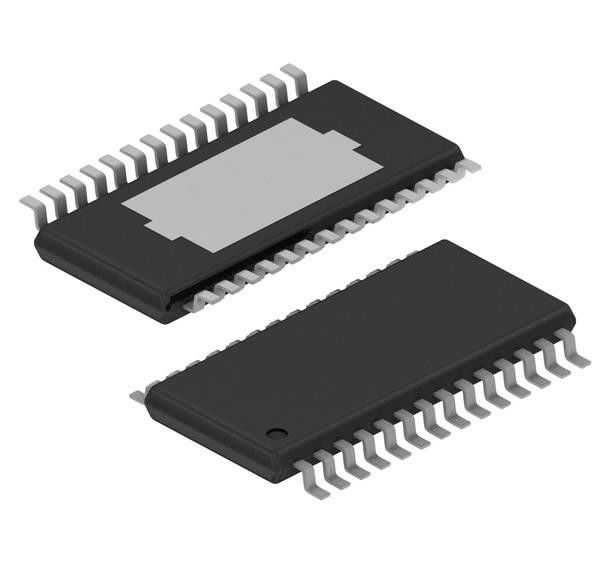

BUF16821AIPWPR Video Amp 18 TFT-LCD Panels Gamma Buffer VCOM Driver 28-HTSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BUF16821AIPWPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Applications: | TFT-LCD Panels: Gamma Buffer, VCOM Driver | Output Type: | Rail-to-Rail |
|---|---|---|---|
| Number Of Circuits: | 18 | Current - Supply: | 12 MA |
| Current - Output / Channel: | 30 MA | Voltage - Supply, Single/Dual (±): | 9V ~ 20V |
| High Light: | Gamma Buffer BUF16821AIPWPR Video Amp,VCOM Driver BUF16821AIPWPR Video Amp,BUF16821AIPWPR |
||
Product Description
AMC1204BDWR Modulator 16 b 78k SPI 16-SOIC 3.3V, 5V Analog and Digital
Specifications of BUF16821AIPWPR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Video Amps and Modules | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Applications | TFT-LCD Panels: Gamma Buffer, VCOM Driver |
| Output Type | Rail-to-Rail |
| Number of Circuits | 18 |
| Slew Rate | - |
| Current - Supply | 12 mA |
| Current - Output / Channel | 30 mA |
| Voltage - Supply, Single/Dual (±) | 9V ~ 20V |
| Mounting Type | Surface Mount |
| Package / Case | 28-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-HTSSOP |
| Base Product Number | BUF16821 |
Features of BUF16821AIPWPR
* 10-BIT RESOLUTION
* 16-CHANNEL P-GAMMA
* 2-CHANNEL P-VCoM
* 16X REWRITABLE NONVOLATILE MEMORY
* TWO INDEPENDENT PIN-SELECTABLEMEMORY BANKS
* RAIL-TO-RAIL OUTPUT
- 300mV Min Swing-to-Rail (10mA)
- > 300mA Max louT
* LOW SUPPLY CURRENT
* SUPPLY VOLTAGE: 9V to 20V
* DIGITAL SUPPLY: 2V to 5.5V
* I2CTM INTERFACE: Supports 400kHz and3.4MHz
Introduction of BUF16821AIPWPR
• Shunt resistor based current sensing in:
– Motor controls
– Green energy
– Inverter applications
– Uninterruptible power supplies
