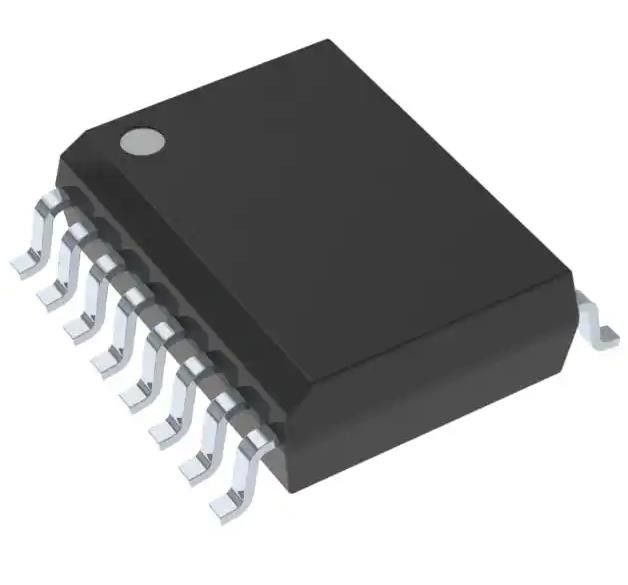

AMC1204BDWR Modulator 16 b 78k SPI 16-SOIC 3.3V 5V Analog and Digital
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AMC1204BDWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Circuits: | 1 | Resolution (Bits): | 16 B |
|---|---|---|---|
| Sampling Rate (Per Second): | 78k | Data Interface: | SPI |
| Voltage Supply Source: | Analog And Digital | Voltage - Supply: | 3.3V, 5V |
| Operating Temperature: | -40°C ~ 105°C | Mounting Type: | Surface Mount |
| High Light: | 3.3V 5V AMC1204BDWR Modulator,Digital AMC1204BDWR Modulator,Analog AMC1204BDWR Modulator |
||
Product Description
AMC1204BDWR Modulator 16 b 78k SPI 16-SOIC 3.3V, 5V Analog and Digital
Specifications of AMC1204BDWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| ADCs/DACs - Special Purpose | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Type | Modulator |
| Number of Channels | 1 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 78k |
| Data Interface | SPI |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 3.3V, 5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | AMC1204 |
Features of AMC1204BDWR
• ±250-mV input voltage range optimized for shunt resistors
• Safety-related certifications:
– 4250-VPK (AMC1204B) basic isolation per DIN VDE V 0884-11: 2017-01
– 3005-VRMS (AMC1204B) isolation for 1 minute per UL1577
– CAN/CSA no. 5A-component acceptance service notice and DIN EN 61010-1
– Working voltage: 1200 VPEAK
– Transient immunity: 15 kV/µs
• High electromagnetic field immunity (see SLLA181A application report)
• Outstanding AC performance:
– SNR: 84 dB (minimum)
– THD: –80 dB (maximum)
• Excellent DC precision:
– INL: ±8 LSB (maximum)
– Gain Error: ±2% (maximum)
• External clock input for easier synchronization
• Fully specified over the extended industrial temperature range
Introduction of AMC1204BDWR
• Shunt resistor based current sensing in:
– Motor controls
– Green energy
– Inverter applications
– Uninterruptible power supplies
