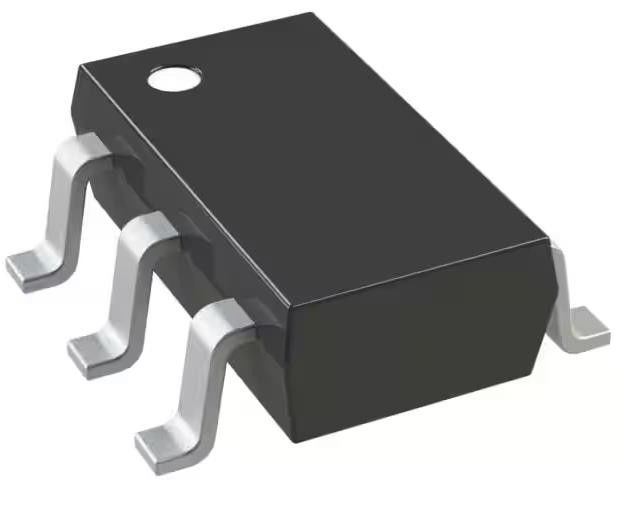

LMV321AUIDBVR General Purpose Amplifier 1 Circuit SOT-23-5 2.5 V - 5.5 V
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMV321AUIDBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Circuits: | 1 | Slew Rate: | 1.7V/µs |
|---|---|---|---|
| Gain Bandwidth Product: | 1 MHz | Current - Input Bias: | 10 PA |
| Voltage - Input Offset: | 1 MV | Current - Supply: | 70µA |
| Current - Output / Channel: | 40 MA | Voltage - Supply Span (Min): | 2.5 V |
| High Light: | SOT-23-5 LMV321AUIDBVR General Purpose Amplifier,1 Circuit LMV321AUIDBVR General Purpose Amplifier,LMV321AUIDBVR |
||
Product Description
LMV321AUIDBVR General Purpose Amplifier 1 Circuit SOT-23-5 2.5 V - 5.5 V
Specifications of LMV321AUIDBVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | 1.7V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 10 pA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 70µA |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | LMV321 |
Features of LMV321AUIDBVR
• Low input offset voltage: ±1 mV
• Rail-to-rail output
• Unity-gain bandwidth: 1 MHz
• Low broadband noise: 30 nV/√ Hz
• Low input bias current: 10 pA
• Low quiescent current: 70 µA/Ch
• Unity-gain stable
• Internal RFI and EMI filter
• Operational at supply voltages as low as 2.5 V
• Easier to stabilize with higher capacitive load due to resistive open-loop output impedance
• Extended temperature range: –40°C to 125°C
Introduction of LMV321AUIDBVR
• Smoke detectors
• Motion detectors
• Wearable devices
• Large and small appliances
• EPOS
• Barcode scanners
• Sensor signal conditioning
• Power modules
• Personal electronics
• Active filters
• HVAC: heating, ventilating, and air conditioning
• Motor control: AC induction
• Low-side current sensing
