LMR23630APDRRR Buck Switching Regulator IC Positive Adjustable 1V 1 Output 3A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMR23630APDRRR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Adjustable | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 4V | Voltage - Input (Max): | 36V |
| Voltage - Output (Min/Fixed): | 1V | Current - Output: | 3A |
| Frequency - Switching: | 400kHz | Operating Temperature: | -40°C ~ 125°C (TJ) |
| High Light: | LMR23630APDRRR Switching Regulator IC,Positive Adjustable Switching Regulator IC,1V Switching Regulator IC |
||
Product Description
LMR23630APDRRR Buck Switching Regulator IC Positive Adjustable 1V 1 Output 3A
Specifications of LMR23630APDRRR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | SIMPLE SWITCHER® |
| Package | Tape & Reel (TR) |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4V |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 1V |
| Voltage - Output (Max) | 28V |
| Current - Output | 3A |
| Frequency - Switching | 400kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank |

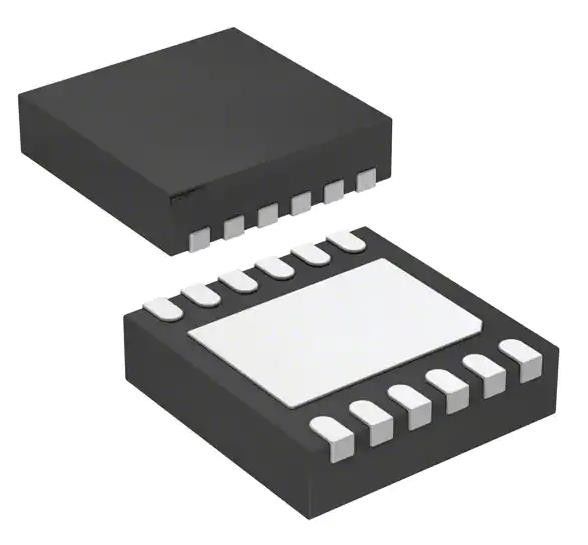

| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-SON (3x3) |
| Base Product Number | LMR23630 |
Features of LMR23630APDRRR
• 4-V to 36-V Input range
• 3-A Continuous output current
• Integrated synchronous rectification
• Current-mode control
• Minimum switch on-time: 60 ns
• Internal compensation for ease of use
• 400-kHz Switching frequency and adjustable frequency options
• PFM and forced PWM mode options
• Frequency synchronization to external clock
• 75-µA Quiescent current at no load for PFM option
• Soft start into a prebiased load
• High duty-cycle operation supported
• Precision enable input
• Output short-circuit protection with hiccup mode
• Thermal protection
• 8-Pin HSOIC with PowerPAD™ package
• 12-Pin WSON wettable flanks package with PowerPAD™
• Use the LMZM33603 module for faster time to market
• Create a custom design using the LMR23625 with the WEBENCH® Power Designer
Introduction of LMR23630APDRRR
• Factory and building automation systems: PLC CPU, HVAC control, elevator control
• Assest tracking
• General purpose wide VIN regulation
