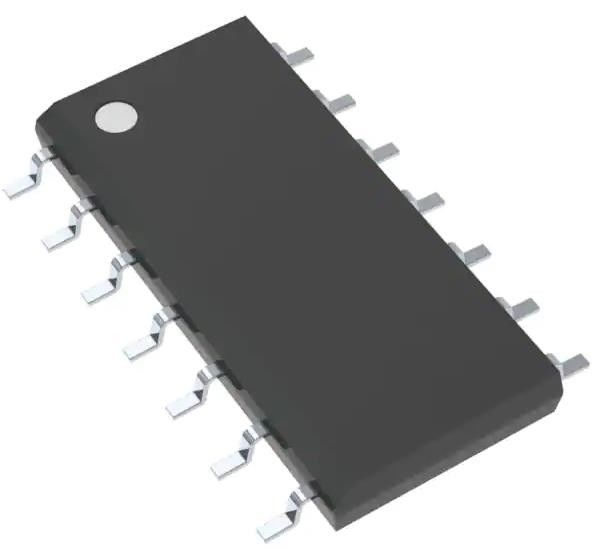

SN74HC08QDRQ1 AND Gate IC 4 Channel 14-SOIC 2V ~ 6V 17ns @ 6V, 50pF
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74HC08QDRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Circuits: | 4 | Number Of Inputs: | 2 |
|---|---|---|---|
| Voltage - Supply: | 2V ~ 6V | Current - Quiescent (Max): | 2 µA |
| Current - Output High, Low: | 5.2mA, 5.2mA | Input Logic Level - Low: | 0.5V ~ 1.8V |
| Input Logic Level - High: | 1.5V ~ 4.2V | Max Propagation Delay @ V, Max CL: | 17ns @ 6V, 50pF |
| High Light: | 2V 6V SN74HC08QDRQ1 Gate IC,50pF SN74HC08QDRQ1 Gate IC,17ns 6V SN74HC08QDRQ1 Gate IC |
||
Product Description
SN74HC08QDRQ1 AND Gate IC 4 Channel 14-SOIC 2V ~ 6V 17ns @ 6V, 50pF
Specifications of SN74HC08QDRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100, 74HC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Logic Type | AND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Input Logic Level - Low | 0.5V ~ 1.8V |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 17ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Base Product Number | 74HC08 |
Features of SN74HC08QDRQ1
• AEC-Q100 Qualified for automotive applications:
– Device temperature grade 1:
–40°C to +125°C, TA
• Buffered inputs
• Positive and negative input clamp diodes
• Wide operating voltage range: 2 V to 6 V
• Supports fanout up to 10 LSTTL loads
• Significant power reduction compared to LSTTL logic ICs
Introduction of SN74HC08QDRQ1
• Combining power good signals
• Enable digital signals
