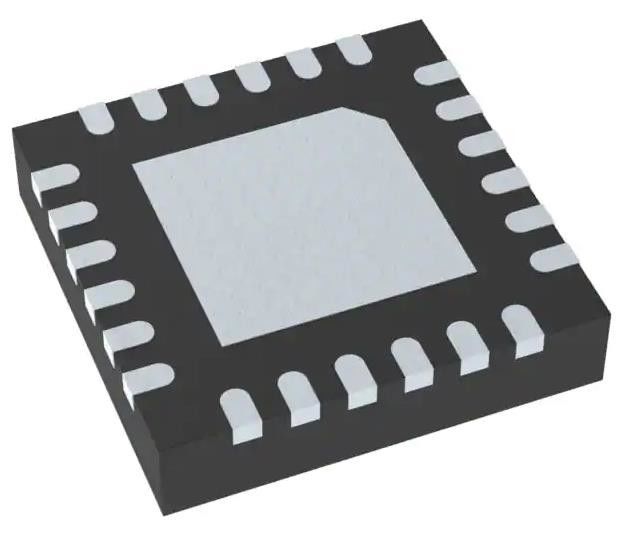

DRV8846RGER Bipolar Motor Driver Power MOSFET Step/Direction 24-VQFN (4x4)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DRV8846RGER |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Function: | Driver - Fully Integrated, Control And Power Stage | Output Configuration: | Half Bridge (4) |
|---|---|---|---|
| Interface: | Step/Direction | Technology: | Power MOSFET |
| Step Resolution: | 1 ~ 1/32 | Applications: | Stepper Motors |
| Current - Output: | 1.4A | Voltage - Supply: | 4V ~ 18V |
| High Light: | Power MOSFET DRV8846RGER Bipolar Motor Driver,24-VQFN DRV8846RGER Bipolar Motor Driver,DRV8846RGER Bipolar Motor Driver |
||
Product Description
DRV8846RGER Bipolar Motor Driver Power MOSFET Step/Direction 24-VQFN (4x4)
Specifications of DRV8846RGER
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Motor Drivers, Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Step/Direction |
| Technology | Power MOSFET |
| Step Resolution | 1 ~ 1/32 |
| Applications | Stepper Motors |
| Current - Output | 1.4A |
| Voltage - Supply | 4V ~ 18V |
| Voltage - Load | 4V ~ 18V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-VQFN (4x4) |
| Base Product Number | DRV8846 |
Features of DRV8846RGER
• PWM Microstepping Motor Driver
– Built-In Microstepping Indexer
– Up to 1/32 Microstepping
– Step/Direction Control
• Multiple Decay Modes
– Smart tune Technology
– Mixed Decay
– Slow Decay
– Fast Decay
• Configurable Off-Time PWM Chopping
– 10-, 20-, or 30-μs Off-Time
• Adaptive Blanking Time for Smooth Stepping
• 4- to 18-V Operating Supply Voltage Range
• 1.4-A (Full Scale (Max Drive) Current per HBridge (at 25°C)
• Low-Current Sleep Mode
• 3-Bit Torque DAC to Scale Motor Current
• Thermally Enhanced Surface Mount Package
• Protection Features
– VM Undervoltage Lockout (UVLO)
– Overcurrent Protection (OCP)
– Thermal Shutdown (TSD)
– Fault Condition Indication Pin (nFAULT)
Introduction of DRV8846RGER
• Printers
• Scanners
• Video Security Cameras
• Projectors
