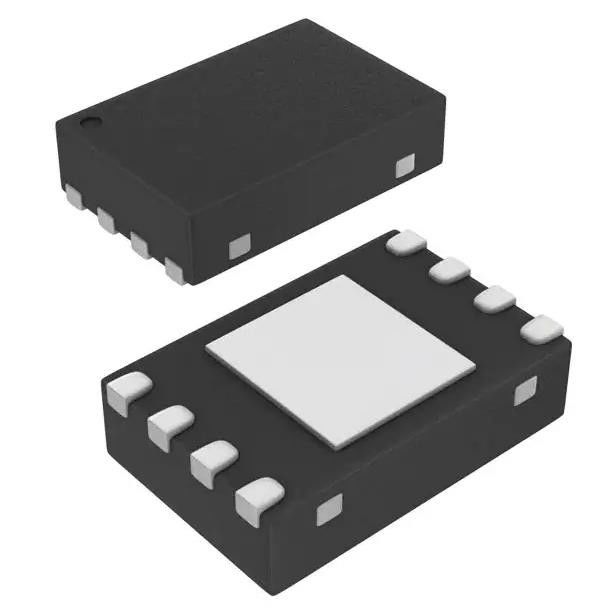

BQ771825DPJR Battery Battery Protection IC Lithium Ion 8-WSON (3x4)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BQ771825DPJR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Function: | Battery Protection | Battery Chemistry: | Lithium Ion |
|---|---|---|---|
| Number Of Cells: | 2 ~ 5 | Fault Protection: | Over Voltage |
| Operating Temperature: | -40°C ~80°C | Mounting Type: | Surface Mount |
| High Light: | 8-WSON Battery Protection IC,Lithium Ion Battery Protection IC |
||
Product Description
BQ771825DPJR Battery Battery Protection IC Lithium Ion 8-WSON (3x4)
Specifications of BQ771825DPJR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Battery Management | |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Battery Protection |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 2 ~ 5 |
| Fault Protection | Over Voltage |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (3x4) |
| Base Product Number | BQ771825 |
Features of BQ771825DPJR
• 2-, 3-, 4-, and 5-series cell overvoltage protection
• Internal delay timer
• Fixed OVP threshold
• High-accuracy overvoltage protection: ± 10 mV
• Low power consumption ICC ≈ 1 µA (VCELL(ALL) < VPROTECT)
• Low leakage current per cell input < 100 nA
• Functional Safety-Capable
– Documentation available to aid functional safety system design
• Package footprint options:
– Small 8-pin QFN (3.00 mm × 4.00 mm)
– Leaded 8-pin MSOP (3.00 mm × 5.00 mm,including leads)
Introduction of BQ771825DPJR
• Protection for li-ion battery packs used in:
– Handheld garden tools
– Handheld power tools
– Cordless vacuum cleaners
– UPS battery backup
– Light electric vehicles (eBike, eScooter, pedal assist bicycles)
