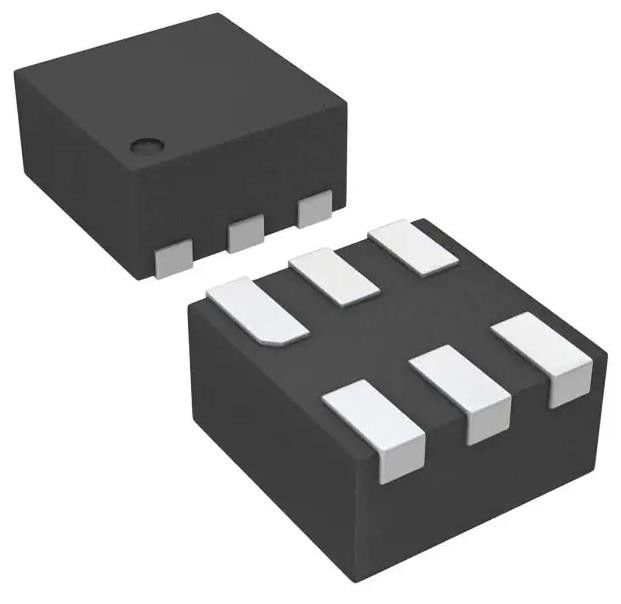

TLV70012DSER Linear Voltage Regulator IC Positive Fixed 1 Output 200mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLV70012DSER |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Current - Quiescent (Iq): | 55 µA | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 5.5V | Voltage - Output (Min/Fixed): | 1.2 V |
| Voltage Dropout (Max): | 0.25V @ 200mA | Current - Output: | 200mA |
| Current - Supply (Max): | 270 µA | Operating Temperature: | -40°C ~ 125°C |
| High Light: | 200mA Voltage Regulator IC,1 Output Voltage Regulator IC,Positive Fixed Voltage Regulator IC |
||
Product Description
TLV70012DSER Linear Voltage Regulator IC Positive Fixed 1 Output 200mA
Specifications of TLV70012DSER
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.25V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 55 µA |
| Current - Supply (Max) | 270 µA |
| PSRR | 68dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFDFN |
| Supplier Device Package | 6-WSON (1.5x1.5) |
| Base Product Number | TLV70012 |
Features of TLV70012DSER
* Available in 2.5-V, 3-V, 3.3-V, 4.85-V, and 5-V Fixed-Output and Adjustable Versions
* Integrated Precision Supply-Voltage Supervisor Monitoring Regulator Output Voltage
* Active-Low Reset Signal with 200-ms Pulse Width
* Very Low Dropout Voltage ...Maximum of 35 mV at IO = 100 mA (TPS7350)
* Low Quiescent Current – Independent of Load . . . 340 µA Typ
* Extremely Low Sleep-State Current,0.5 µA Max
* 2% Tolerance Over Full Range of Load,Line, and Temperature for Fixed-Output Versions§
* Output Current Range of 0 mA to 500 mA
* TSSOP Package Option Offers Reduced Component Height For Critical Appl
Introduction of TLV70012DSER
* Wireless Handsets
* Smart Phones, PDAs
* ZigBee" Networks
* Bluetooth" Devices
* Li-lon Operated Handheld Products
* WLAN and Other PC Add-on Cards
