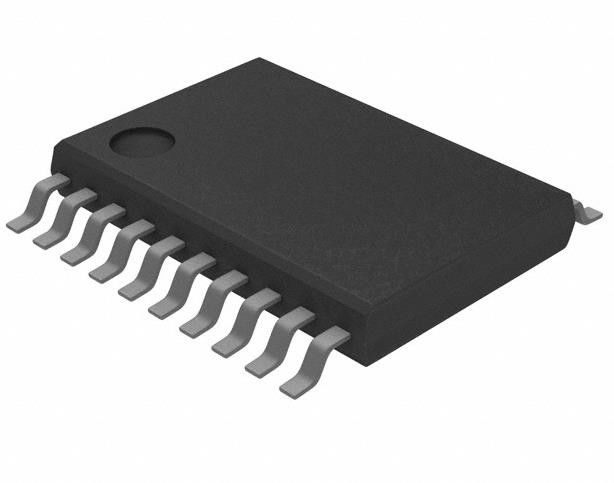

TPS7333QPW Linear Voltage Regulator IC Positive Fixed 1 Output 500mA 20-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS7333QPW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 10V | Voltage - Output (Min/Fixed): | 3.3 V |
| Voltage Dropout (Max): | 0.4V @ 500mA | Current - Output: | 500mA |
| Current - Supply (Max): | 550 µA | Operating Temperature: | -40°C ~ 125°C |
| High Light: | TPS7333QPW Linear Voltage Regulator IC,500mA Voltage Regulator IC,1 Output Voltage Regulator IC |
||
Product Description
TPS7333QPW Linear Voltage Regulator IC Positive Fixed 1 Output 500mA 20-TSSOP
Specifications of TPS7333QPW
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.4V @ 500mA |
| Current - Output | 500mA |
| Current - Supply (Max) | 550 µA |
| PSRR | 51dB ~ 49dB (120Hz) |
| Control Features | Enable, Reset |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| Base Product Number | TPS7333 |
Features of TPS7333QPW
* Available in 2.5-V, 3-V, 3.3-V, 4.85-V, and 5-V Fixed-Output and Adjustable Versions
* Integrated Precision Supply-Voltage Supervisor Monitoring Regulator Output Voltage
* Active-Low Reset Signal with 200-ms Pulse Width
* Very Low Dropout Voltage ...Maximum of 35 mV at IO = 100 mA (TPS7350)
* Low Quiescent Current – Independent of Load . . . 340 µA Typ
* Extremely Low Sleep-State Current,0.5 µA Max
* 2% Tolerance Over Full Range of Load,Line, and Temperature for Fixed-Output Versions§
* Output Current Range of 0 mA to 500 mA
* TSSOP Package Option Offers Reduced Component Height For Critical Appl
Introduction of TPS7333QPW
The TPS73xx devices are members of a family of micropower low-dropout (LDO) voltage regulators.
They are differentiated from the TPS71xx and TPS72xx LDOs by their integrated delayed microprocessor-reset function.
If the precision delayed reset is not required, the TPS71xx and TPS72xx should be considered.
