ACPL-T350-560E 2.5A Gate Driver Optical Coupling 3750Vrms 1 Channel 8-DIP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ACPL-T350-560E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Channels: | 1 | Voltage - Isolation: | 3750Vrms |
|---|---|---|---|
| Common Mode Transient Immunity (Min): | 15kV/µs | Propagation Delay TpLH / TpHL (Max): | 500ns, 500ns |
| Pulse Width Distortion (Max): | 300ns | Rise / Fall Time (Typ): | 15ns, 20ns |
| Current - Output High, Low: | 2A, 2A | Current - Peak Output: | 2.5A |
| High Light: | ACPL-T350-560E Gate Driver,Optical Coupling 2.5A Gate Driver,8-DIP 2.5A Gate Driver |
||
Product Description

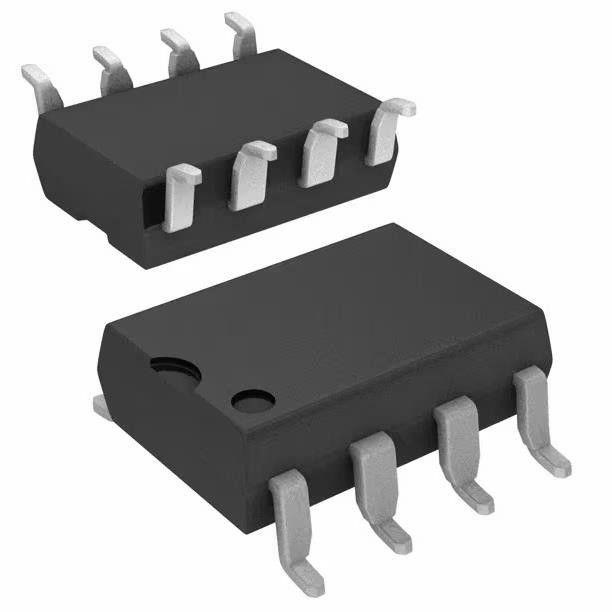

ACPL-T350-560E 2.5A Gate Driver Optical Coupling 3750Vrms 1 Channel 8-DIP
Specifications of ACPL-T350-560E
| TYPE | DESCRIPTION |
| Category | Isolators |
| Isolators - Gate Drivers | |
| Mfr | Broadcom Limited |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Pulse Width Distortion (Max) | 300ns |
| Rise / Fall Time (Typ) | 15ns, 20ns |
| Current - Output High, Low | 2A, 2A |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 15V ~ 30V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-DIP Gull Wing |
| Approval Agency | CSA, IEC/EN/DIN, UR |
| Base Product Number | ACPL-T350 |
Features of ACPL-T350-560E
* 2.5A Absolute Maximum Peak Output Current
* 15 kV/μs minimum Common Mode Rejection (CMR) at VCM = 1500 V
* 1.5 V maximum low level output voltage (VOL)
* ICC = 4 mA maximum supply current
* Under Voltage Lock-Out protection (UVLO) with hysteresis
* Wide operating VCC range: 15 to 30 Volts 500 ns maximum switching speeds
* Industrial temperature range: -40°C to 100°C
* Safety Approval
- UL Recognized 3750 Vrms for 1 min.
- CSA Approval
- IEC/EN/DIN EN 60747-5-5 Approved
- VIORM = 630 Vpeak (Option 060)
Application of ACPL-T350-560E
* IGBT/MOSFET gate drive
* Inverter for Home Appliances
* Industrial Inverters
* Switching Power Supplies (SPS)
