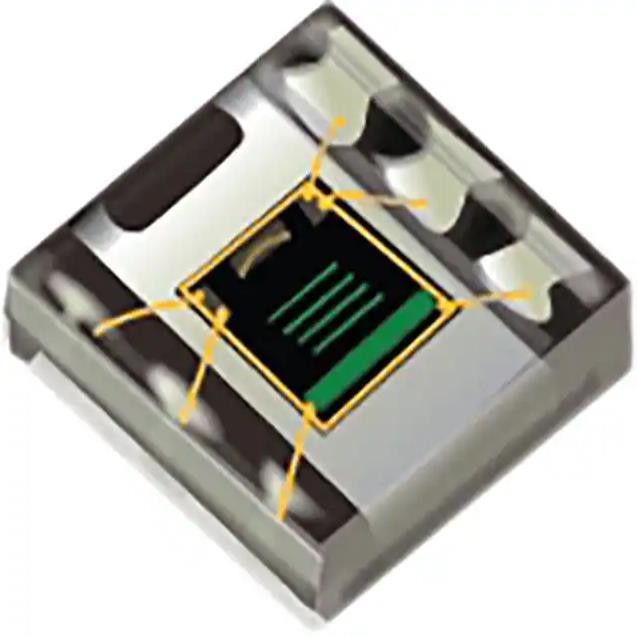

OPT3004DNPR Optical Sensor Ambient 550nm I²C/SMBus 6-UDFN Exposed Pada
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | OPT3004DNPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Wavelength: | 550nm | Proximity Detection: | No |
|---|---|---|---|
| Output Type: | I²C/SMBus | Operating Temperature: | -40°C ~ 85°C |
| Voltage - Supply: | 1.6V ~ 3.6V | Input Logic Level - Low: | 0.7V |
| High Light: | Ambient OPT3004DNPR Optical Sensor,6-UDFN OPT3004DNPR Optical Sensor,550nm OPT3004DNPR Optical Sensor |
||
Product Description
OPT3004DNPR Optical Sensor Ambient 550nm I²C/SMBus 6-UDFN Exposed Pada
Specifications of OPT3004DNPR
| TYPE | DESCRIPTION |
| Category | Sensors, Transducers |
| Optical Sensors | |
| Ambient Light, IR, UV Sensors | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Ambient |
| Wavelength | 550nm |
| Proximity Detection | No |
| Output Type | I²C/SMBus |
| Voltage - Supply | 1.6V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-UDFN Exposed Pad |
| Supplier Device Package | 6-USON (2x2) |
| Base Product Number | OPT3004 |
Features of OPT3004DNPR
• Precision optical filtering to match human eye:
– Rejects > 99% (typical) of IR over ±85° angle of incidence
• Automatic full-scale setting feature simplifies software and ensures proper configuration
• Measurements: 0.01 lux to 83 k lux
• 23-Bit Effective dynamic range with automatic gain ranging
• 12 Binary-weighted full-scale range settings:
< 0.2% (typical) matching between ranges
• Low operating current: 1.8 µA (Typical)
• Operating temperature range: –40°C to +85°C
• Wide power-supply range: 1.6 V to 3.6 V
• 5.5-V Tolerant I/O
• Flexible interrupt system
• Small-form factor:
– 2 mm × 2 mm × 0.65 mm for USON package
– 2.1 mm × 1.9 mm × 0.6 mm for SOT-5X3 package
Application of OPT3004DNPR
• IP Network cameras
• Display backlight controls
• Lighting control systems
• Tablet and notebook computers
• Thermostats and home automation appliances
• Point-of-sale terminals
• Outdoor traffic and street lights
