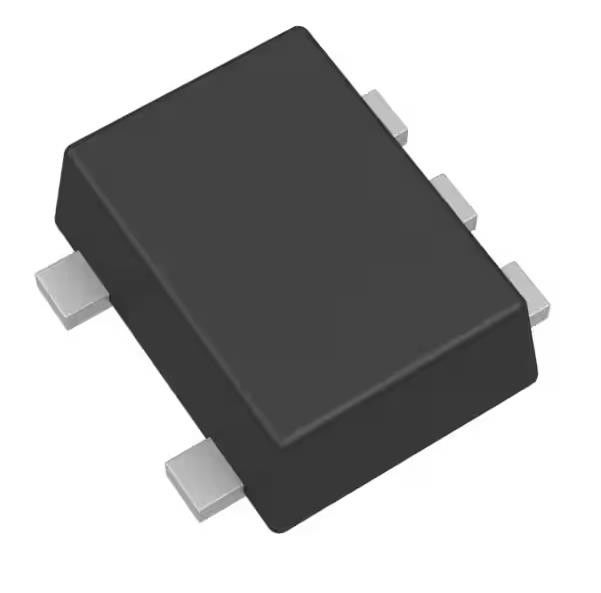

SN74AUC1G08DRLR AND Gate Electronic IC Chips 1 Channel SOT-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74AUC1G08DRLR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Circuits: | 1 | Number Of Inputs: | 2 |
|---|---|---|---|
| Voltage - Supply: | 0.8V ~ 2.7V | Current - Quiescent (Max): | 10 µA |
| Current - Output High, Low: | 9mA, 9mA | Input Logic Level - Low: | 0.7V |
| Input Logic Level - High: | 1.7V | Max Propagation Delay @ V, Max CL: | 2ns @ 2.5V, 30pF |
| High Light: | AND Gate Electronic IC Chips,SOT-5 Electronic IC Chips,SN74AUC1G08DRLR |
||
Product Description
SN74AUC1G08DRLR AND Gate Electronic IC Chips 1 Channel SOT-5
Specifications of SN74AUC1G08DRLR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | 74AUC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Logic Type | AND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 0.8V ~ 2.7V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 9mA, 9mA |
| Input Logic Level - Low | 0.7V |
| Input Logic Level - High | 1.7V |
| Max Propagation Delay @ V, Max CL | 2ns @ 2.5V, 30pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-5 |
| Package / Case | SOT-553 |
| Base Product Number | 74AUC1G08 |
Features of SN74AUC1G08DRLR
• Latch-Up Performance Exceeds 100 mA PerJESD 78, Class II
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
• Available in the Texas Instruments NanoFree™ Package
• Optimized for 1.8-V Operation and Is 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
• Ioff Supports Partial-Power-Down Mode and Back Drive Protection
• Sub-1-V Operable
• Max tpd of 2.4 ns at 1.8 V
• Low Power Consumption, 10-µA Max ICC
• ±8-mA Output Drive at 1.8 V
Application of SN74AUC1G08DRLR
• AV Receiver
• Audio Dock: Portable
• Blu-Ray Player and Home Theater
• Embedded PC
• MP3 Player/Recorder (Portable Audio)
• Personal Digital Assistant (PDA)
• Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
• Solid State Drive (SSD): Client and Enterprise
• TV: LCD/Digital and High-Definition (HDTV)
• Tablet: Enterprise
• Video Analytics: Server
• Wireless Headset, Keyboard, and Mouse
