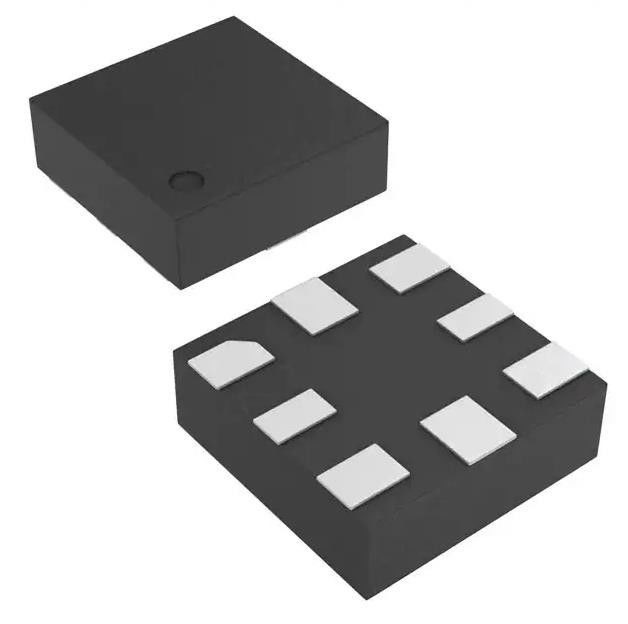

TPD6E004RSER Clamp Ipp Tvs Diode Surface Mount 8-UQFN (1.5x1.5)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPD6E004RSER |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Unidirectional Channels: | 6 | Voltage - Reverse Standoff (Typ): | 5.5V (Max) |
|---|---|---|---|
| Voltage - Breakdown (Min): | 6V | Power Line Protection: | Yes |
| Applications: | Ethernet | Operating Temperature: | -40°C ~ 85°C (TA) |
| High Light: | 8-UQFN Ipp Tvs Diode,Surface Mount Ipp Tvs Diode,TPD6E004RSER |
||
Product Description
TPD6E004RSER Clamp Ipp Tvs Diode Surface Mount 8-UQFN (1.5x1.5)
Specifications of TPD6E004RSER
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 6 |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | - |
| Current - Peak Pulse (10/1000µs) | - |
| Power - Peak Pulse | - |
| Power Line Protection | Yes |
| Applications | Ethernet |
| Capacitance @ Frequency | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-UFQFN |
| Supplier Device Package | 8-UQFN (1.5x1.5) |
| Base Product Number | TPD6E004 |
Features of TPD6E004RSER
Administrator:
• ESD Protection Exceeds JESD
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC 61000-4-2 Contact Discharge
– ±12-kV IEC 61000-4-2 Air-Gap Discharge
• Low 1.6-pF I/O Capacitance
• 0.9-V to 5.5-V Supply-Voltage Range
• 6-Channel Device
• Space-Saving UQFN (RSE) Package
Application of TPD6E004RSER
• USB
• Ethernet
• FireWire
• Video
• Cell Phones
• SVGA Video Connections
• Glucose Meters
Environmental & Export Classifications of TPD6E004RSER
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
