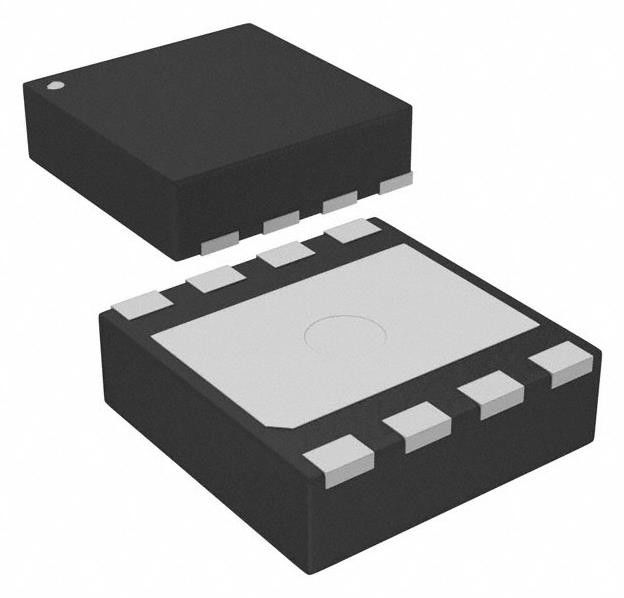

TPS2557QDRBRQ1 Power Switch/Driver 1:1 N-Channel 5A 8-SON (3x3)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS2557QDRBRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Ratio - Input:Output: | 0.042361111 |
|---|---|---|---|
| Output Configuration: | High Side | Output Type: | N-Channel |
| Interface: | On/Off | Voltage - Load: | 2.5V ~ 6.5V |
| Voltage - Supply (Vcc/Vdd): | Not Required | Current - Output (Max): | 5A |
Product Description
TPS2557QDRBRQ1 Power Switch/Driver 1:1 N-Channel 5A 8-SON (3x3)
Specifications of TPS2557QDRBRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 0.042361111 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 2.5V ~ 6.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 5A |
| Rds On (Typ) | 22mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SON (3x3) |
| Package / Case | 8-VDFN Exposed Pad |
| Base Product Number | TPS2557 |
Features of TPS2557QDRBRQ1
• AEC-Q100 Qualified
– Device HBM ESD Classification Level H2
– Device CDM ESD Classification Level C5
• Functional Safety-Capable
– Documentation available to aid functional safety system design
• Meets USB current-limiting requirements
• Adjustable current limit, 500 mA – 5 A (typ.)
• ±6.5% current-limit accuracy at 4.5 A
• Fast short-circuit response – 3.5 μs (typ.)
• 22-mΩ high-side MOSFET
• Operating range: 2.5 V to 6.5 V
• 2-μA maximum standby supply current
• Built-in soft-start
• 15-kV and 8-kV system-level ESD capable
• Safety-related certifications:
– UL Recognized for UL 2367
– CB Certification for IEC 60950
– CB Certification for IEC 62368
Application of TPS2557QDRBRQ1
Automotive USB Charging Ports
Environmental & Export Classifications of TPS2557QDRBRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
