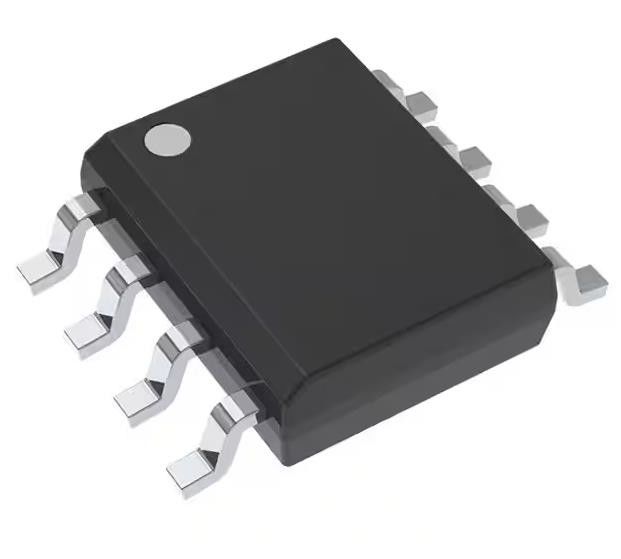

UCC27424DR Low-Side Gate Driver Electronic IC Chips Non-Inverting 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | UCC27424DR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Driven Configuration: | Low-Side | Channel Type: | Independent |
|---|---|---|---|
| Number Of Drivers: | 2 | Gate Type: | N-Channel, P-Channel MOSFET |
| Voltage - Supply: | 4V ~ 15V | Logic Voltage - VIL, VIH: | 1V, 2V |
| Current - Peak Output (Source, Sink): | 4A, 4A | Rise / Fall Time (Typ): | 20ns, 15ns |
Product Description
UCC27424DR Low-Side Gate Driver Electronic IC Chips Non-Inverting 8-SOIC
Specifications of UCC27424DR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Gate Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4V ~ 15V |
| Logic Voltage - VIL, VIH | 1V, 2V |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Non-Inverting |
| Rise / Fall Time (Typ) | 20ns, 15ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | UCC27424 |
Features of UCC27424DR
* Industry-Standard Pin-Out
* Enable Functions for Each Driver
* High Current Drive Capability of +4 AUnique BiPolar and CMOS True Drive OutputStage Provides High Current at MOSFET MillerThresholds
* TTL/CMOS Compatible Inputs Independent ofSupply Voltage
* 20-ns Typical Rise and 15-ns Typical Fall Timeswith 1.8-nF Load
* Typical Propagation Delay Times of 25 ns withInput Falling and 35 ns with Input Rising
* 4-V to 15-V Supply Voltage
* Dual Outputs Can Be Paralleled for Higher DriveCurrent
* Available in Thermally Enhanced MSOPPowerPADTM Package
* Rated From -40°C to 125°C
Application of UCC27424DR
* Switch Mode Power Supplies
* DC/DC Converters
* Motor Controllers
* Line Drivers
* Class D Switching Amplifiers
Environmental & Export Classifications of UCC27424DR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
