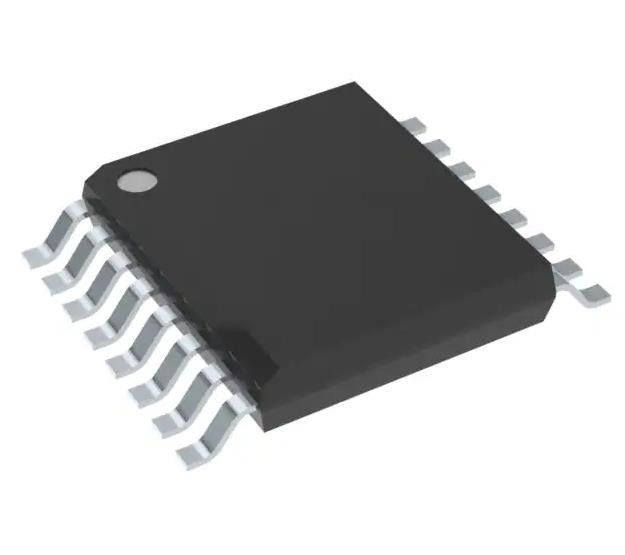

TRS3232EIDBR Electronic IC Chips 2/2 Transceiver Full RS232 16-SSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TRS3232EIDBR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Protocol: | RS232 | Number Of Drivers/Receivers: | 2/2 |
|---|---|---|---|
| Duplex: | Full | Receiver Hysteresis: | 300 MV |
| Data Rate: | 250kbps | Voltage - Supply: | 3V ~ 5.5V |
| Operating Temperature: | -40°C ~ 85°C | Package / Case: | 16-SSOP (0.209", 5.30mm Width) |
Product Description
TRS3232EIDBR Electronic IC Chips 2/2 Transceiver Full RS232 16-SSOP
Specifications of TRS3232EIDBR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Transceiver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 2/2 |
| Duplex | Full |
| Receiver Hysteresis | 300 mV |
| Data Rate | 250kbps |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 16-SSOP |
| Base Product Number | TRS3232 |
Features of TRS3232EIDBR
• ESD protection for RS-232 bus pins
– ±15 kV (HBM)
– ±8 kV (IEC61000-4-2, Contact discharge)
– ±15 kV (IEC61000-4-2, Air-gap discharge)
• Meets or exceeds the requirements of TIA/EIA-232-F and ITU V.28 standards
• Operates with 3-V to 5.5-V VCC supply
– Interoperable with RS-232 down to 2.7-V VCC
• Operates up to 250 kbps
• Two drivers and two receivers
• Low supply current: 300 μA (typical)
• External capacitors: 4 × 0.1 μF
• Accepts 5-V logic input with 3.3-V supply
• Available in near chip-scale package (QFN-16, 3mm x 3 mm), 85% smaller than SOIC-16
• Pin compatible to alternative high-speed devices(1 Mbps)
– SN65C3232E (–40°C to +85°C)
– SN75C3232E (0°C to 70°C)
Application of TRS3232EIDBR
• Industrial PCs
• Wired networking
• Data center and enterprise computing
• Battery-powered systems
• Notebooks
• Palmtop PCs
• Hand-held equipment
