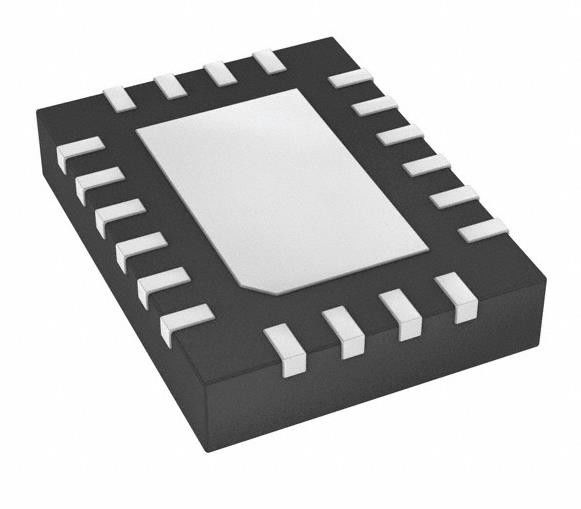

TPS254900IRVCRQ1 Power Switch/Driver 1:1 N-Channel 3A 20-WQFN (4x3)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS254900IRVCRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Ratio - Input:Output: | 0.042361111 |
|---|---|---|---|
| Output Configuration: | High Side | Output Type: | N-Channel |
| Interface: | On/Off | Voltage - Load: | 4.5V ~ 6.5V |
| Voltage - Supply (Vcc/Vdd): | Not Required | Current - Output (Max): | 3A |
Product Description
LM8365BALMFX27/NOPB Supervisor Open Drain or Open Collector 1 Channel SOT-23-5
Specifications of TPS254900IRVCRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Switch Type | USB Switch |
| Number of Outputs | 1 |
| Ratio - Input:Output | 0.042361111 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 4.5V ~ 6.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3A |
| Rds On (Typ) | 45mOhm |
| Input Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Over Voltage, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-WQFN (4x3) |
| Package / Case | 20-WFQFN Exposed Pad |
| Base Product Number | TPS254900 |
Features of TPS254900IRVCRQ1
• AEC-Q100 Qualified With the Following Results:
– Device HBM ESD Classification Level H2
– Device CDM ESD Classification Level C5
• 4.5-V to 6.5-V Input Operating Range
• Integrated 45-mΩ (typ.) High-Side MOSFET
• 3-A Maximum Continuous Output Current
• VBUS ±5% Cable Compensation Accuracy at Connector
• Supports USB BC 1.2 CDP and SDP Modes
• Short-to-Battery Protection on OUT, DP_IN, and DM_IN Pins
• DP_IN and DM_IN IEC 61000-4-2 Rated
– ±8-kV Contact and ±15-kV Air Discharge
• 20-Pin QFN (3-mm × 4-mm) Package
Application of TPS254900IRVCRQ1
• Automotive USB Charging Ports (Host and Hubs)
• Automotive USB Protection
