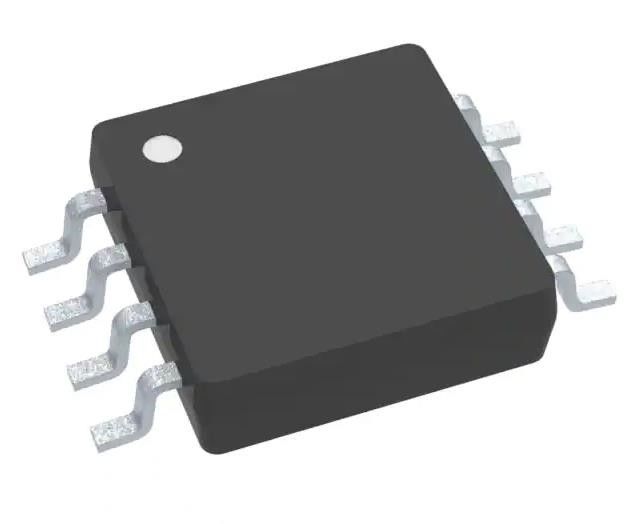

LM393BIDGKR Comparator Differential Open-Collector, Rail-to-Rail 8-VSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM393BIDGKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Elements: | 2 | Output Type: | Open-Collector, Rail-to-Rail |
|---|---|---|---|
| Voltage - Supply, Single/Dual (±): | 2V ~ 36V, ±1V ~ 18V | Voltage - Input Offset (Max): | 2.5mV @ 36V |
| Current - Input Bias (Max): | 0.025µA @ 5V | Current - Output (Typ): | 21mA @ 5V |
| Current - Quiescent (Max): | 600µA | Propagation Delay (Max): | 1µs (Typ) |
Product Description
LM393BIDGKR Comparator Differential Open-Collector, Rail-to-Rail 8-VSSOP
Specifications of LM393BIDGKR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Comparators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Differential |
| Number of Elements | 2 |
| Output Type | Open-Collector, Rail-to-Rail |
| Voltage - Supply, Single/Dual (±) | 2V ~ 36V, ±1V ~ 18V |
| Voltage - Input Offset (Max) | 2.5mV @ 36V |
| Current - Input Bias (Max) | 0.025µA @ 5V |
| Current - Output (Typ) | 21mA @ 5V |
| Current - Quiescent (Max) | 600µA |
| CMRR, PSRR (Typ) | - |
| Propagation Delay (Max) | 1µs (Typ) |
| Hysteresis | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | LM393 |
Features of LM393BIDGKR
• NEW LM393B and LM2903B
• Improved specifications of B-version
– Maximum rating: up to 38 V
– ESD rating (HBM): 2k V
– Low input offset: 0.37 mV
– Low input bias current: 3.5 nA
– Low supply-current: 200 µA per comparator
– Faster response time of 1 µsec
– Extended temperature range for LM393B
– Available in tiny 2 x 2mm WSON package
• B-version is drop-in replacement for LM293, LM393 and LM2903, A and V versions
• Common-mode input voltage range includes ground
• Differential input voltage range equal to maximumrated supply voltage: ±38 V
• Low output saturation voltage
• Output compatible with TTL, MOS, and CMOS
Application of LM393BIDGKR
• Vacuum robot
• Single phase UPS
• Server PSU
• Cordless power tool
• Wireless infrastructure
• Applicances
• Building automation
• Factory automation & control
• Motor drives
• Infotainment & cluster
