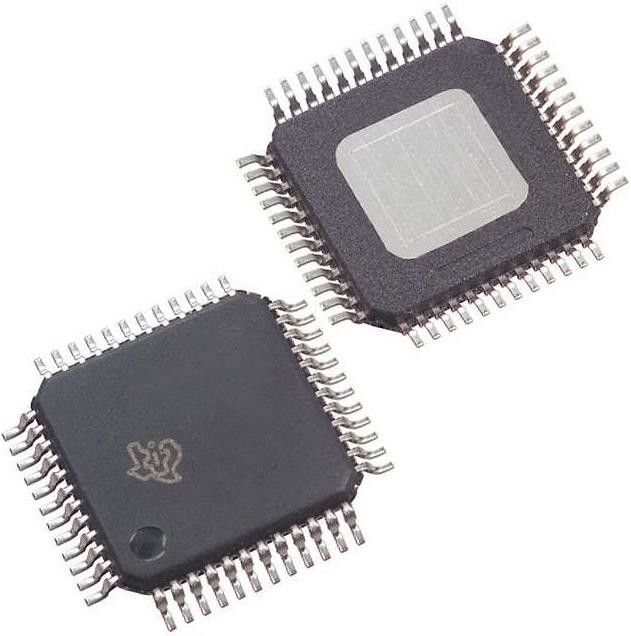

TAS5727PHPR Amplifier IC 2-Channel (Stereo) Class D 48-HTQFP (7x7)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TAS5727PHPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Depop, Digital Inputs, I²C, I²S, Mute, Short-Circuit And Thermal Protection, Shutdown, Volume Control | Output Type: | 2-Channel (Stereo) |
|---|---|---|---|
| Max Output Power X Channels @ Load: | 41.5W X 2 @ 4Ohm | Voltage - Supply: | 8V ~ 26V |
| Operating Temperature: | 0°C ~ 85°C (TA) | Package / Case: | 48-PowerTQFP |
Product Description
TCA9509DGKR Buffer Electronic IC Chips ReDriver 1 Channel 400kHz 8-VSSOP
Specifications of TAS5727PHPR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Audio Amplifiers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Class D |
| Output Type | 2-Channel (Stereo) |
| Max Output Power x Channels @ Load | 41.5W x 2 @ 4Ohm |
| Voltage - Supply | 8V ~ 26V |
| Features | Depop, Digital Inputs, I²C, I²S, Mute, Short-Circuit and Thermal Protection, Shutdown, Volume Control |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 85°C (TA) |
| Supplier Device Package | 48-HTQFP (7x7) |
| Package / Case | 48-PowerTQFP |
| Base Product Number | TAS5727 |
Features of TAS5727PHPR
• Audio Input and Output
– 25 W Into an 8-Ω Load From a 20-V Supply
– Wide PVDD Range, From 8 V to 26 V
– Supports BTL Configuration With 4-Ω Load
– Efficient Class-D Operation Eliminates Need for Heatsinks
– One Serial Audio Input (Two Audio Channels)
– I2C Address Selection Pin (Chip Select)
– Single Output Filter PBTL Support
– Supports 44.1-kHz to 48-kHz Sample Rate (LJ/RJ/I2S)
• Audio and PWM Processing
– Independent Channel Volume Controls With Gain of 24 dB to Mute With 0.125-dB Resolution Steps
– Programmable Two-Band Dynamic-Range Control
– 18 Programmable Biquads for Speaker EQ and Other Audio-Processing Features
– Programmable Coefficients for DRC Filters
– DC Blocking Filters
• General Features
– I2C Serial Control Interface Operational Without MCLK
– Requires Only 3.3 V and PVDD
– No External Oscillator: Internal Oscillator for Automatic Rate Detection
– Surface-Mount, 48-Pin HTQFP Package
– Thermal and Short-Circuit Protection
– 106-dB SNR, A-Weighted
– AD, BD, and Ternary Modulation
– Up to 90% Efficient
– PWM Level Meter to Measure the Digital Power Profile
• Benefits
– EQ: Speaker Equalization Improves Audio Performance
– Two-Band DRC: Dynamic Range Compression. Can Be Used As Power Limiter.Enables Speaker Protection, Easy Listening,Night-Mode Listening
– Autodetect: Automatically Detects SampleRate Changes. No Need for External Microprocessor Intervention
Application of TAS5727PHPR
• LCD TV, LED TV, Soundbar
