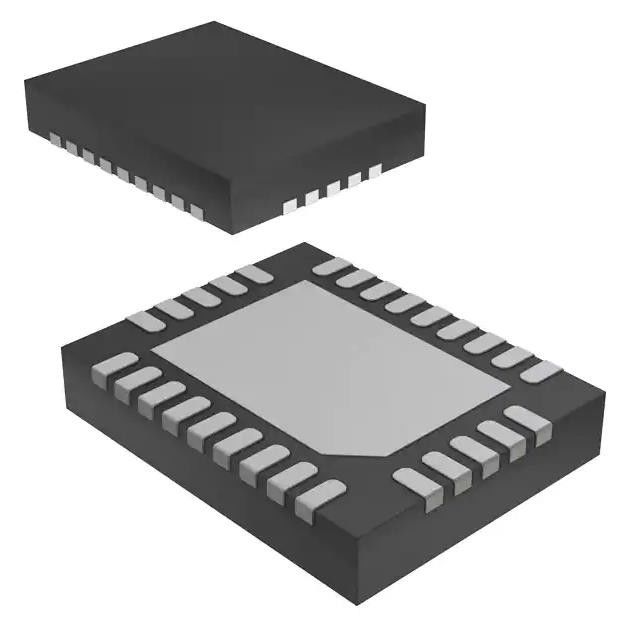

TPS53915RVER Buck Switching Regulator IC Positive Adjustable 0.6V 1
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS53915RVER |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Topology: | Buck | Output Type: | Adjustable |
|---|---|---|---|
| Number Of Outputs: | 1 | Voltage - Input (Min): | 1.5V |
| Voltage - Input (Max): | 18V | Voltage - Output (Min/Fixed): | 0.6V |
| Voltage - Output (Max): | 5.5V | ||
Product Description
TPS53915RVER Buck Switching Regulator IC Positive Adjustable 0.6V 1
Specifications of TPS53915RVER
| TYPE | DESCRIPTION |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | SWIFT™, D-CAP3™, Eco-Mode™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.5V |
| Voltage - Input (Max) | 18V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 12A |
| Frequency - Switching | 200kHz ~ 1MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-VFQFN Exposed Pad |
| Supplier Device Package | 28-VQFN-CLIP (4.5x3.5) |
| Base Product Number | TPS53915 |
Features of TPS53915RVER
* Integrated 13.8- and 5.9-mQ MOSFETs Support12-A Continuous Output Current
* Adjustments Available ThroughPMBusTM
- Voltage Margin and Adjustment
- Soft-Start Time
- Power-On Delay
- VDD UVLO Level
- Fault Reporting
- Switching Frequency
* Supports All Ceramic Output Capacitors
* Reference Voltage 600 mV +0.5% Tolerance
* Output Voltage Range: 0.6 V to 5.5 V
* D-CAP3TM Control Mode With Fast Load-StepResponse
* Auto-Skipping Eco-Mode rm for High Light-LoadEfficiency
* FCCM for Tight Output Ripple and VoltageRequirements
* Eight Selectable Frequency Settings from200 kHz to 1 MHz
* 3.5 mm x 4.5 mm, 28-Pin, QFN Package
Application of TPS53915RVER
* Server and Cloud-Computing Point-of-Load (POL) Products
* Broadband, Networking, and OpticalCommunications Infrastructure
* I/O Supplies
* Supported at the WEBENCH T Design Center
