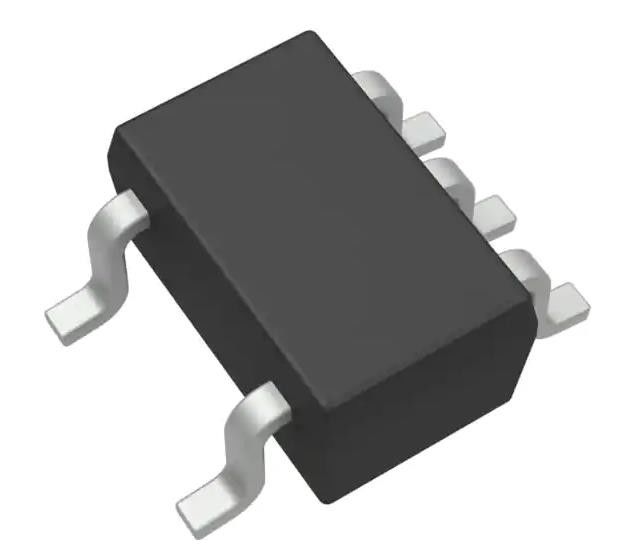

SN74AUP1T34DCKR Buffer Non-Inverting 1 Element 1 Bit per Element Push-Pull
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74AUP1T34DCKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Logic Type: | Buffer, Non-Inverting | Number Of Elements: | 1 |
|---|---|---|---|
| Number Of Bits Per Element: | 1 | Output Type: | Push-Pull |
| Current - Output High, Low: | 6mA, 6mA | Voltage - Supply: | 0.9V ~ 3.6V |
| Operating Temperature: | -40°C ~ 85°C (TA) | Package / Case: | 5-TSSOP, SC-70-5, SOT-353 |
Product Description
SN74AUP1T34DCKR Buffer Non-Inverting 1 Element 1 Bit per Element Push-Pull
Specifications of SN74AUP1T34DCKR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | 74AUP |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | Push-Pull |
| Current - Output High, Low | 6mA, 6mA |
| Voltage - Supply | 0.9V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| Base Product Number | 74AUP1T34 |
Features of SN74AUP1T34DCKR
• Wide Operating VCC Range of 0.9 V to 3.6 V
• Balanced Propagation Delays: tPLH = tPHL (1.8-V to 3.3-V Translation Typical)
• Low Static-Power Consumption: Maximum of 5-µA ICC
• ±6-mA Output Drive at 3 V
• Ioff Supports Partial Power-Down-Mode Operation
• VCC Isolation Feature – If VCCA Input Is at GND, B Port Is in the High-Impedance state
• Input Hysteresis Allows Slow Input Transition and Better Switching Noise Immunity at Input
• ESD Protection Exceeds JESD 22
• 5000-V Human-Body Model (A114-A)
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
Application of SN74AUP1T34DCKR
• Enterprise
• Industrial
• Personal Electronics
• Telecommunications
