LP5912Q1.8DRVRQ1 Linear Voltage Regulator IC Positive Fixed 1 Output 500mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LP5912Q1.8DRVRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 6.5V | Voltage - Output (Min/Fixed): | 1.8V |
| Voltage Dropout (Max): | 0.25V @ 500mA | Current - Output: | 500mA |
| Current - Quiescent (Iq): | 55 µA | Current - Supply (Max): | 600 µA |
Product Description
LP5912Q1.8DRVRQ1 Linear Voltage Regulator IC Positive Fixed 1 Output 500mA
Specifications of LP5912Q1.8DRVRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.25V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 55 µA |
| Current - Supply (Max) | 600 µA |
| PSRR | 80dB ~ 40dB (100Hz ~ 100kHz) |
| Control Features | Enable, Power Good, Soft Start |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |

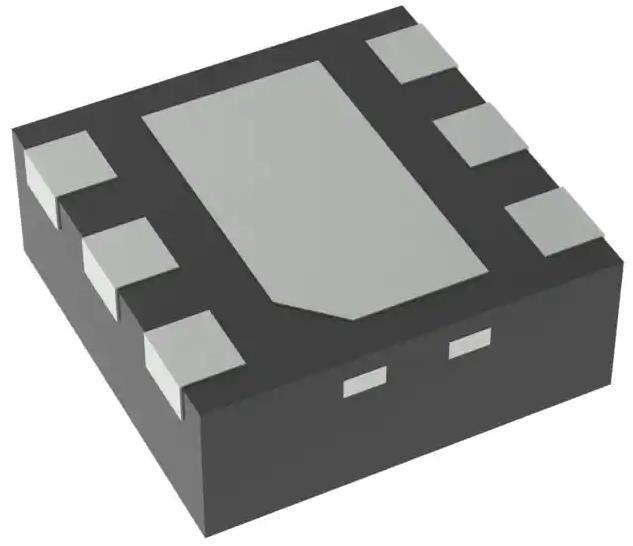

| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (2x2) |
| Base Product Number | LP5912 |
Features of LP5912Q1.8DRVRQ1
• Qualified for Automotive Applications
• AEC Q100-Qualified With the Following Results
– Device Temperature Grade 1: –40°C to
+125°C Ambient Operating Temperature
Range
– Device HBM Classification Level 2
– Device CDM Classification Level C6
• Input Voltage Range: 1.6 V to 6.5 V
• Output Voltage Range: 0.8 V to 5.5 V
• Output Current up to 500 mA
• Low Output-Voltage Noise: 12 µVRMS Typical
• PSRR at 1 kHz: 75 dB Typical
• Output Voltage Tolerance (VOUT ≥ 3.3 V): ±2%
• Low IQ (Enabled, No Load): 30 µA Typical
• Low Dropout (VOUT ≥ 3.3 V): 95 mV Typical at
500-mA Load
• Stable With 1-µF Ceramic Input and Output
Capacitors
• Thermal-Overload and Short-Circuit Protection
• Reverse Current Protection
• No Noise Bypass Capacitor Required
• Output Automatic Discharge for Fast Turnoff
• Power-Good Output With 140-µs Typical Delay
• Internal Soft-Start to Limit the In-rush Current
• –40°C to +125°C Operating Junction Temperature
Range
Application of LP5912Q1.8DRVRQ1
• Automotive Infotainment
• Telematics Systems
• ADAS Cameras and Radar
• Navigation Systems
Environmental & Export Classifications of LP5912Q1.8DRVRQ1
| ATTRIBUTE DESCRIPTION | |
| RoHS Status ROHS3 Compliant | |
| Moisture Sensitivity Level (MSL) 1 (Unlimited) | |
| REACH Status REACH Unaffected | |
| ECCN EAR99 | |
| HTSUS 8542.39.0001 |
