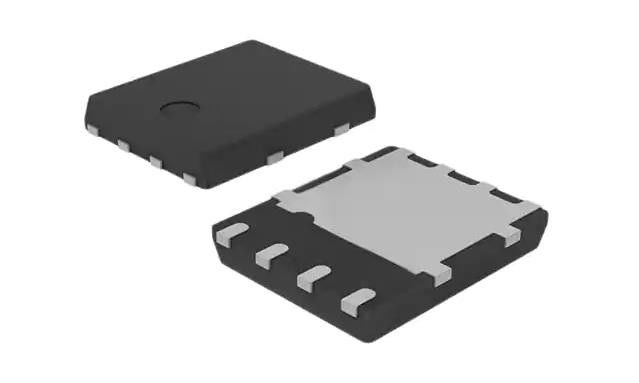

STL285N4F7AG N-Channel 40 V 120A (Tc) 188W (Tc) Surface Mount PowerFlat™ (5x6)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | STL285N4F7AG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| FET Type: | N-Channel | Technology: | MOSFET (Metal Oxide) |
|---|---|---|---|
| Drain To Source Voltage (Vdss): | 40 V | Current - Continuous Drain (Id) @ 25°C: | 120A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On): | 10V | Rds On (Max) @ Id, Vgs: | 1.1mOhm @ 24A, 10V |
| Vgs(th) (Max) @ Id: | 4V @ 250µA | Gate Charge (Qg) (Max) @ Vgs: | 67 NC @ 10 V |
Product Description
STL285N4F7AG N-Channel 40 V 120A (Tc) 188W (Tc) Surface Mount PowerFlat™ (5x6)
Specifications of STL285N4F7AG
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | STMicroelectronics |
| Series | STripFET™ F7 |
| Package | Tape & Reel (TR) |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 120A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 1.1mOhm @ 24A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 67 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5600 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 188W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerFlat™ (5x6) |
| Package / Case | 8-PowerVDFN |
| Base Product Number | STL285 |
Environmental & Export Classifications of STL285N4F7AG
| ATTRIBUTE DESCRIPTION | |
| RoHS Status ROHS3 Compliant | |
| Moisture Sensitivity Level (MSL) 1 (Unlimited) | |
| REACH Status REACH Unaffected | |
| ECCN EAR99 | |
| HTSUS 8541.29.0095 |
