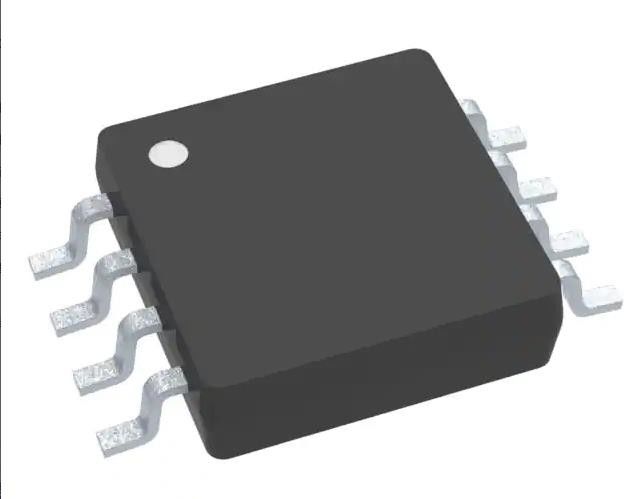

LM5085MME/NOPB Buck Regulator Positive Output Step-Down Controller IC 8-VSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM5085MME/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Transistor Driver | Function: | Step-Down |
|---|---|---|---|
| Output Configuration: | Positive | Voltage - Supply (Vcc/Vdd): | 4.5V ~ 75V |
| Number Of Outputs: | 1 | Output Phases: | 1 |
| Frequency - Switching: | Up To 1MHz | Duty Cycle (Max): | 100% |
Product Description
SN74AHCT541PWR Buffer Non-Inverting 1 Element 8 Bit per Element 3-State
Specifications of LM5085MME/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 75V |
| Frequency - Switching | Up to 1MHz |
| Duty Cycle (Max) | 100% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, On Time Control |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | LM5085 |
Features of LM5085MME/NOPB
* LM5085-Q1 is an Automotive Grade Product thatis AEC-Q100 Grade 1 Qualified (-40"C to 125COperating Junction Temperature)
* Wide 4.5-V to 75-V Input Voltage Range
* Adjustable Current Limit Using Rps(on) or aCurrent Sense Resistor
* Programmable Switching Frequency to 1MHz
* No Loop Compensation Required
* Ultra-Fast Transient Response
* Nearly Constant Operating Frequency with Lineand Load Variations
* Adjustable Output Voltage from 1.25 VPrecision +2% Feedback
* ReferenceCapable of 100% Duty Cycle Operation
* Internal Soft-start Timer
* Integrated High Voltage Bias Regulator
* Thermal Shutdown
* Package:
-HVSSOP-8
-VSSOP-8
Descriptions of LM5085MME/NOPB
• Automotive Infotainment
• Battery/Super Capacitor Chargers
• LED Drivers
Environmental & Export Classifications of LM5085MME/NOPB
| ATTRIBUTE DESCRIPTION | |
| RoHS Status ROHS3 Compliant | |
| Moisture Sensitivity Level (MSL) 1 (Unlimited) | |
| REACH Status REACH Unaffected | |
| ECCN EAR99 | |
| HTSUS 8542.31.0001 |
