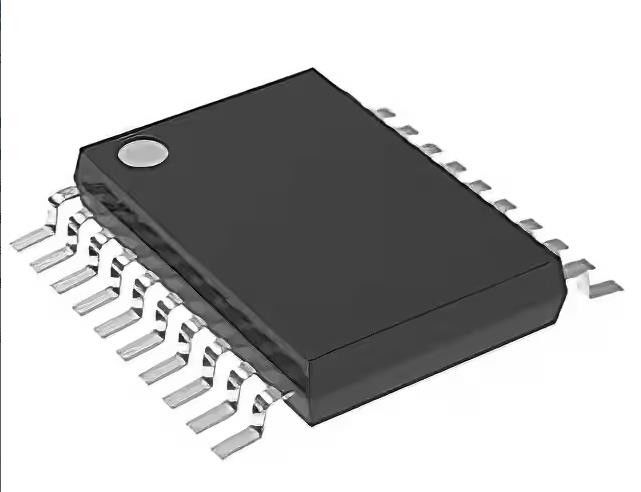

SN74AHCT541PWR Buffer Non-Inverting 1 Element 8 Bit per Element 3-State
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74AHCT541PWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Logic Type: | Buffer, Non-Inverting | Number Of Elements: | 1 |
|---|---|---|---|
| Number Of Bits Per Element: | 8 | Output Type: | 3-State |
| Current - Output High, Low: | 8mA, 8mA | Voltage - Supply: | 4.5V ~ 5.5V |
| Operating Temperature: | -40°C ~ 125°C (TA) | Package / Case: | 20-TSSOP (0.173", 4.40mm Width) |
Product Description
SN74AHCT541PWR Buffer Non-Inverting 1 Element 8 Bit per Element 3-State
Specifications of SN74AHCT541PWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | 74AHCT |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 8mA, 8mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| Base Product Number | 74AHCT541 |
Features of SN74AHCT541PWR
• Inputs Are TTL-Voltage Compatible
• Latch-Up Performance Exceeds 250 mA Per JESD 17
• ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model (A114-A) – 200-V Machine Model (A115-A) – 1000-V Charged-Device Model (C101)
Descriptions of SN74AHCT541PWR
The ’AHCT541 octal buffers/drivers are ideal for driving bus lines or buffer memory address registers. These devices feature inputs and outputs on opposite sides of the package to facilitate printed circuit board layout
Environmental & Export Classifications of ATMEGA1609-MUR
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
