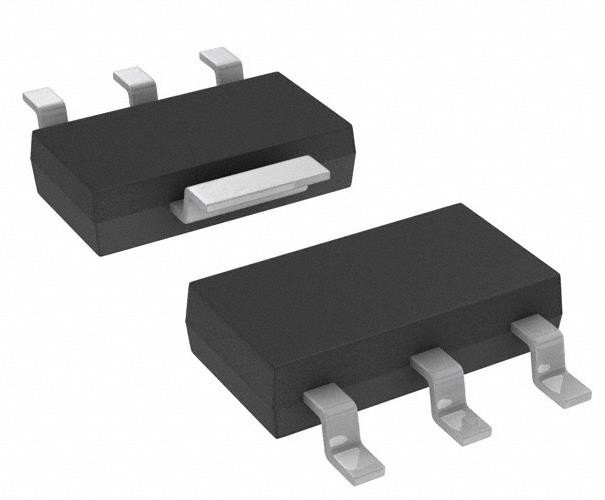

TLE42664GHTMA2 Linear Voltage Regulator IC Positive Fixed 1 Output 100mA PG-SOT223-4
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLE42664GHTMA2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Regulators: | 1 | Voltage - Input (Max): | 40 V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 5V | Voltage Dropout (Max): | 0.5V @ 100mA |
| Current - Output: | 100mA | Current - Quiescent (Iq): | 60 µA |
Product Description
TL431QPK Shunt Voltage Reference IC Adjustable 2.495V 36 VV ±2.2% 100 mA SOT-89-3
Specifications of TLE42664GHTMA2
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Infineon Technologies |
| Series | Automotive, AEC-Q100, OPTIREG™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.5V @ 100mA |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 60 µA |
| Current - Supply (Max) | 4 mA |
| PSRR | 68dB (100Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | PG-SOT223-4 |
| Base Product Number | TLE42664 |
Features of TLE42664GHTMA2
• Output Voltage 5 V ± 2 % up to Output Currents of 50 mA
• Output Voltage 5 V ± 3 % up to Output Currents 100 mA
• Very Low Dropout Voltage
• Very Low Current Consumption: typ. 40 µA
• Enable Input
• Output Current Limitation
• Reverse Polarity Protection
• Overtemperature Shutdown
• Wide Temperature Range From -40 °C up to 150 °C
• Suitable for Use in Automotive Electronics
• Green Product (RoHS compliant)
• AEC Qualified
Applications of TLE42664GHTMA2
The TLE42664 is a monolithic integrated low dropout fixed voltage regulator for load currents up to 100 mA. It is the 1-to-1 replacement product for the TLE4266-2.
Environmental & Export Classifications of TLE42664GHTMA2
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
