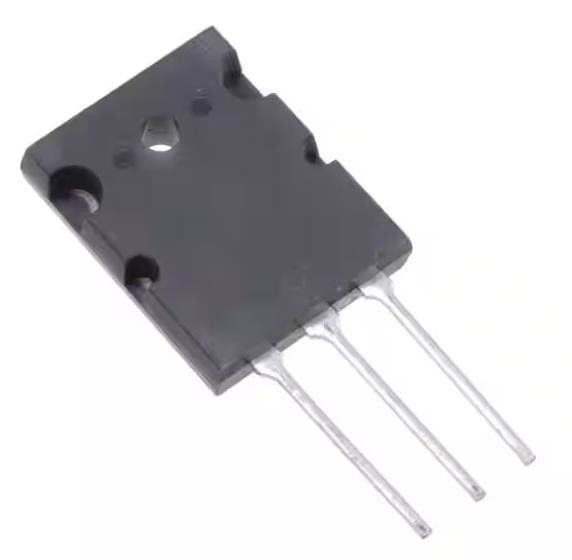

TK100L60W N-Channel 600 V 100A (Ta) 797W (Tc) Through Hole TO-3P(L)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TK100L60W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| FET Type: | N-Channel | Technology: | MOSFET (Metal Oxide) |
|---|---|---|---|
| Drain To Source Voltage (Vdss): | 600 V | Current - Continuous Drain (Id) @ 25°C: | 100A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On): | 10V | Rds On (Max) @ Id, Vgs: | 18mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id: | 3.7V @ 5mA | Gate Charge (Qg) (Max) @ Vgs: | 360 NC @ 10 V |
Product Description
TK100L60W N-Channel 600 V 100A (Ta) 797W (Tc) Through Hole TO-3P(L)
Specifications of TK100L60W
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Toshiba Semiconductor and Storage |
| Series | DTMOSIV |
| Package | Tube |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 18mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 3.7V @ 5mA |
| Gate Charge (Qg) (Max) @ Vgs | 360 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 15000 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 797W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-3P(L) |
| Package / Case | TO-3PL |
| Base Product Number | TK100L60 |
Features of TK100L60W
(1) Low drain-source on-resistance: RDS(ON) = 0.015 Ω (typ.) by used to Super Junction Structure : DTMOS
(2) Easy to control Gate switching
(3) Enhancement mode: Vth = 2.7 to 3.7 V (VDS = 10 V, ID = 5 mA)
Applications of TK100L60W
Switching Voltage Regulators
Environmental & Export Classifications of TK100L60W
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
