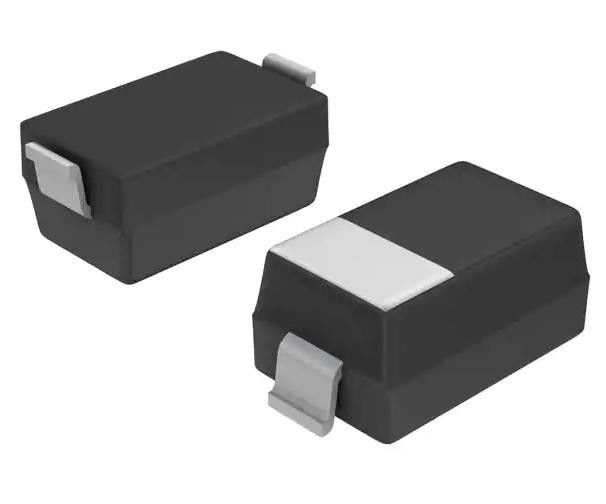

SZMMSZ33ET1G Zener Diode 33 V 500 mW ±5% Surface Mount SOD-123
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SZMMSZ33ET1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Zener (Nom) (Vz): | 33 V | Tolerance: | ±5% |
|---|---|---|---|
| Power - Max: | 500 MW | Impedance (Max) (Zzt): | 80 Ohms |
| Current - Reverse Leakage @ Vr: | 50 NA @ 23.1 V | Voltage - Forward (Vf) (Max) @ If: | 900 MV @ 10 MA |
| Operating Temperature: | -55°C ~ 150°C | Package / Case: | SOD-123 |
Product Description
SZMMSZ33ET1G Zener Diode 33 V 500 mW ±5% Surface Mount SOD-123
Specifications of SZMMSZ33ET1G
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Zener | |
| Single Zener Diodes | |
| Mfr | onsemi |
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Voltage - Zener (Nom) (Vz) | 33 V |
| Tolerance | ±5% |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 80 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 23.1 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Operating Temperature | -55°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123 |
| Supplier Device Package | SOD-123 |
| Base Product Number | SZMMSZ33 |
Features of SZMMSZ33ET1G
* 500 mW Rating on FR−4 or FR−5 Board
* Wide Zener Reverse Voltage Range − 2.4 V to 56 V
* Package Designed for Optimal Automated Board Assembly
* Small Package Size for High Density Applications
* ESD Rating of Class 3 (> 16 kV) per Human Body Model
* Peak Power − 225 W (8 X 20 s)
* AEC−Q101 Qualified and PPAP Capable
* SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
* Pb−Free Packages are Available*
Applications of SZMMSZ33ET1G
Three complete series of Zener diodes are offered in the convenient, surface mount plastic SOD−123 package. These devices provide a convenient alternative to the leadless 34−package style.
Environmental & Export Classifications of SZMMSZ33ET1G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0050 |
