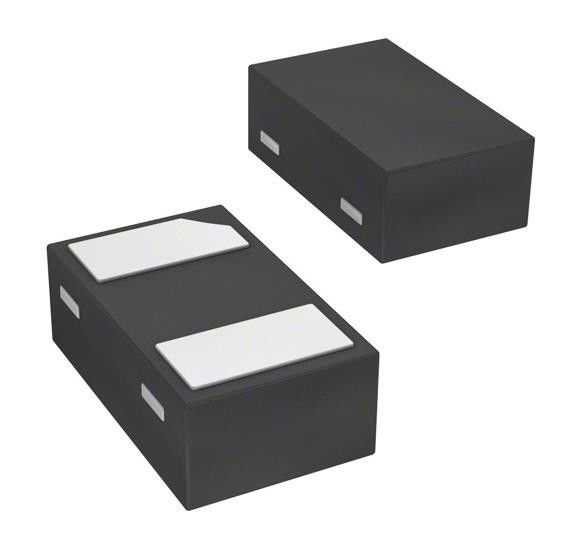

SZESD7451N2T5G Clamp Ipp Tvs Diode Surface Mount 2-XDFN (1x0.6) (SOD-882)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SZESD7451N2T5G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Zener | Unidirectional Channels: | 1 |
|---|---|---|---|
| Voltage - Reverse Standoff (Typ): | 3.3V (Max) | Voltage - Breakdown (Min): | 6V (Typ) |
| Power Line Protection: | No | Applications: | Automotive, RF Antenna |
| Capacitance @ Frequency: | 0.25pF @ 1MHz | Operating Temperature: | -55°C ~ 150°C (TJ) |
Product Description
SZESD7451N2T5G Clamp Ipp Tvs Diode Surface Mount 2-XDFN (1x0.6) (SOD-882)
Specifications of SZESD7451N2T5G
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | onsemi |
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 6V (Typ) |
| Voltage - Clamping (Max) @ Ipp | - |
| Current - Peak Pulse (10/1000µs) | - |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | Automotive, RF Antenna |
| Capacitance @ Frequency | 0.25pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 2-XDFN |
| Supplier Device Package | 2-XDFN (1x0.6) (SOD-882) |
| Base Product Number | SZESD7451 |
Features of SZESD7451N2T5G
• Ultra−Low Capacitance (0.35 pF Max)
• Low Clamping Voltage
• Stand−off Voltage: 3.3 V
• Low Leakage
• Response Time is < 1 ns
• Low Dynamic Resistance < 1
• IEC61000−4−2 Level 4 ESD Protection
• SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications of SZESD7451N2T5G
• RF Signal ESD Protection
• RF Switching, PA, and Antenna ESD Protection
• Near Field Communications
Environmental & Export Classifications of SZESD7451N2T5G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
