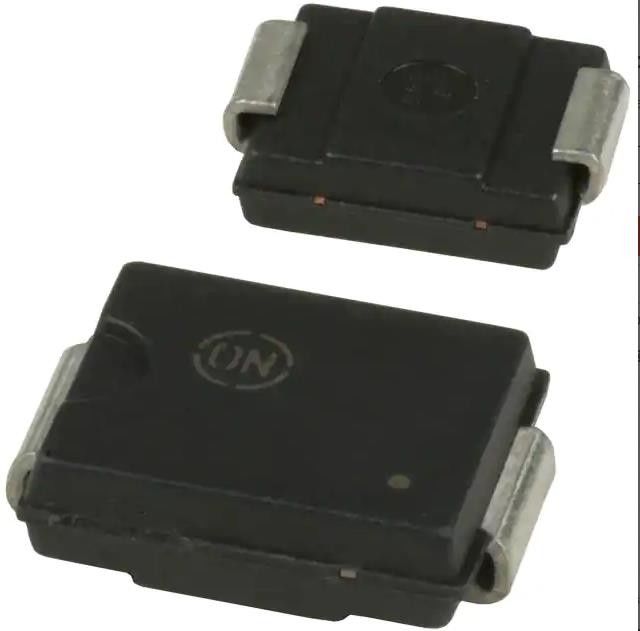

SZ1SMC26AT3G 42.1V Clamp 35.6A Ipp Tvs Diode Surface Mount SMC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SZ1SMC26AT3G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Zener | Unidirectional Channels: | 1 |
|---|---|---|---|
| Voltage - Reverse Standoff (Typ): | 26V | Voltage - Breakdown (Min): | 28.9V |
| Voltage - Clamping (Max) @ Ipp: | 42.1V | Current - Peak Pulse (10/1000µs): | 35.6A |
| Power - Peak Pulse: | 1500W (1.5kW) | Power Line Protection: | No |
Product Description
STC3117IJT Battery Battery Electronic IC Chips Monitor IC 9-CSP
Specifications of SZ1SMC26AT3G
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Littelfuse Inc. |
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 26V |
| Voltage - Breakdown (Min) | 28.9V |
| Voltage - Clamping (Max) @ Ipp | 42.1V |
| Current - Peak Pulse (10/1000µs) | 35.6A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | Automotive |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | SMC |
| Base Product Number | 1SMC |
Features of SZ1SMC26AT3G
* Zener Transient Overvoltage Suppressors
• Working Peak Reverse Voltage Range − 5.0 V to 78 V
• Standard Zener Breakdown Voltage Range
− 6.4 V to 95.8 V
• Peak Power − 1500 W@1 ms
• ESD Rating of Class 3 (> 16 KV) per Human Body Model
• Maximum Clamp Voltage @ Peak Pulse Current
• Low Leakage < 5 µA Above 10 V
Applications of SZ1SMC26AT3G
The SZ1SMC series is designed to protect voltage sensitive components from high voltage, high energy transients.
Environmental & Export Classifications of SZ1SMC26AT3G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
