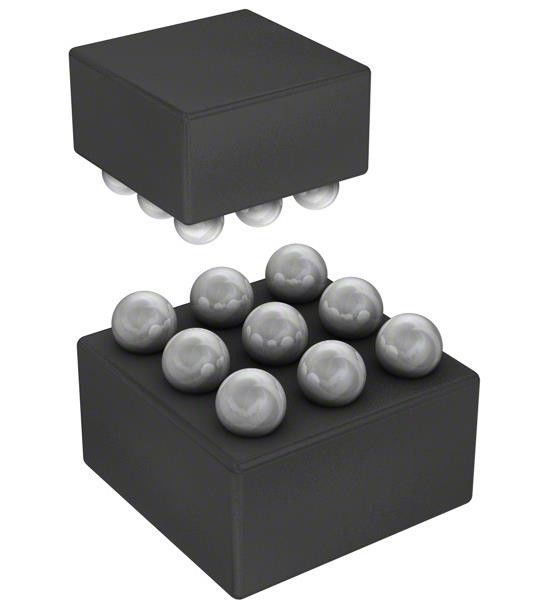

STC3117IJT Battery Battery Electronic IC Chips Monitor IC 9-CSP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | STC3117IJT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Function: | Battery Monitor | Interface: | I²C |
|---|---|---|---|
| Operating Temperature: | -40°C ~ 85°C (TA) | Mounting Type: | Surface Mount |
| Package / Case: | 9-WFBGA, CSPBGA | Supplier Device Package: | 9-CSP |
Product Description
STC3117IJT Battery Battery Electronic IC Chips Monitor IC 9-CSP
Specifications of STC3117IJT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Battery Management | |
| Mfr | STMicroelectronics |
| Series | OptimGauge™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Battery Monitor |
| Battery Chemistry | - |
| Number of Cells | - |
| Fault Protection | - |
| Interface | I²C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 9-WFBGA, CSPBGA |
| Supplier Device Package | 9-CSP |
| Base Product Number | STC3117 |
Features of STC3117IJT
* Patented OptimGauge™ algorithm for accurate battery capacity calculation
* Robust initial open-circuit-voltage (OCV) measurement at power up
* Programmable low battery alarm
* Missing/swapped battery detection
* Average current internal calculation
* End-of-charge detection
* Internal temperature sensor
* Battery swap detection with protection against false battery insertion
* Low power: 40 µA in voltage-only mode, 2 µA max in standby mode
* 1.49 x 1.594 mm 9-bump CSP package
Applications of STC3117IJT
* Mobile phones, multimedia players, digital cameras
* Portable medical equipment
Environmental & Export Classifications of STC3117IJT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
