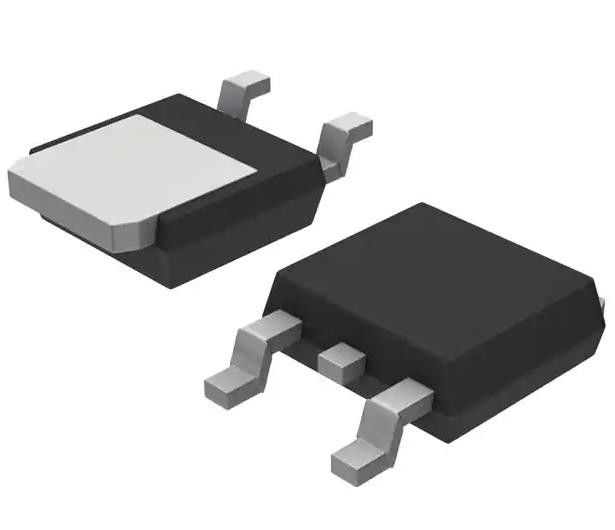

SNRVBD660CTT4G Diode Array 1 Pair Common Cathode 60 V 3A Surface Mount TO-252-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SNRVBD660CTT4G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Diode Configuration: | 1 Pair Common Cathode | Technology: | Schottky |
|---|---|---|---|
| Voltage - DC Reverse (Vr) (Max): | 60 V | Current - Average Rectified (Io) (per Diode): | 3A |
| Voltage - Forward (Vf) (Max) @ If: | 700 MV @ 3 A | Speed: | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr: | 100 µA @ 60 V | Operating Temperature - Junction: | -65°C ~ 175°C |
Product Description
SNRVBD660CTT4G Diode Array 1 Pair Common Cathode 60 V 3A Surface Mount TO-252-3
Specifications of SNRVBD660CTT4G
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Diode Arrays | |
| Mfr | onsemi |
| Series | SWITCHMODE™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Current - Average Rectified (Io) (per Diode) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 700 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 100 µA @ 60 V |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Base Product Number | SNRVBD660 |
Features of SNRVBD660CTT4G
• Extremely Fast Switching
• Extremely Low Forward Drop
• Platinum Barrier with Avalanche Guardrings
• NRVBD and SBRV Prefixes for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
Applications of SNRVBD660CTT4G
These state−of−the−art devices are designed for use in switching power supplies, inverters and as free wheeling diodes.
Environmental & Export Classifications of SNRVBD660CTT4G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
