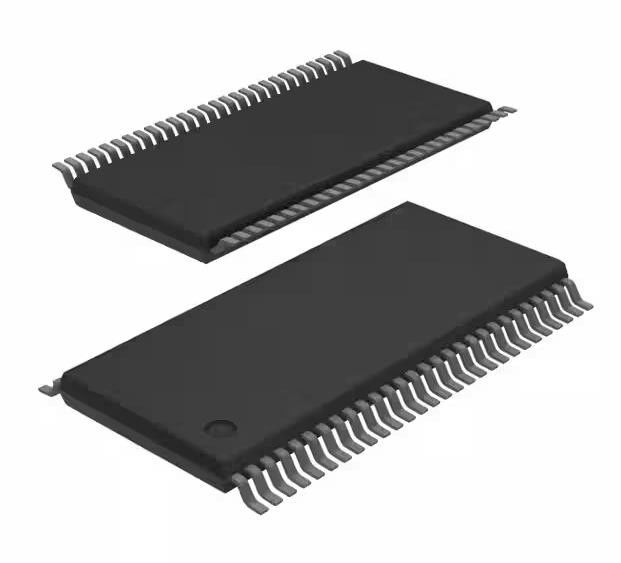

SN74CBT16211ADGGR Bus Electronic IC Chips Switch 12 x 1:1 56-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74CBT16211ADGGR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Last Time Buy | Type: | Bus Switch |
|---|---|---|---|
| Circuit: | 12 X 1:1 | Independent Circuits: | 2 |
| Voltage Supply Source: | Single Supply | Voltage - Supply: | 4.5V ~ 5.5V |
| Operating Temperature: | -40°C ~ 85°C | Mounting Type: | Surface Mount |
Product Description
SN74CBT16211ADGGR Bus Electronic IC Chips Switch 12 x 1:1 56-TSSOP
Specifications of SN74CBT16211ADGGR
| Category | Integrated Circuits (ICs) |
| Logic | |
| Signal Switches, Multiplexers, Decoders | |
| Mfr | Texas Instruments |
| Series | 74CBT |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Last Time Buy |
| Type | Bus Switch |
| Circuit | 12 x 1:1 |
| Independent Circuits | 2 |
| Current - Output High, Low | - |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 56-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 56-TSSOP |
| Base Product Number | 74CBT16211 |
Features of SN74CBT16211ADGGR
Member of the Texas Instruments Widebus Family
5-Ω Switch Connection Between Two Ports
TTL-Compatible Input Levels
Applications of SN74CBT16211ADGGR
The SN74CBT16211A provides 24 bits of high-speed TTL-compatible bus switching. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.
Environmental & Export Classifications of SN74CBT16211ADGGR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
