SMBG18CA-E3/52 29.2V Clamp 20.5A Ipp Tvs Diode Surface Mount SMBG (DO-215AA)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SMBG18CA-E3/52 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Bidirectional Channels: | 1 | Voltage - Reverse Standoff (Typ): | 18V |
|---|---|---|---|
| Voltage - Breakdown (Min): | 20V | Voltage - Clamping (Max) @ Ipp: | 29.2V |
| Current - Peak Pulse (10/1000µs): | 20.5A | Power - Peak Pulse: | 600W |
| Power Line Protection: | No | Operating Temperature: | -55°C ~ 150°C (TJ) |
Product Description

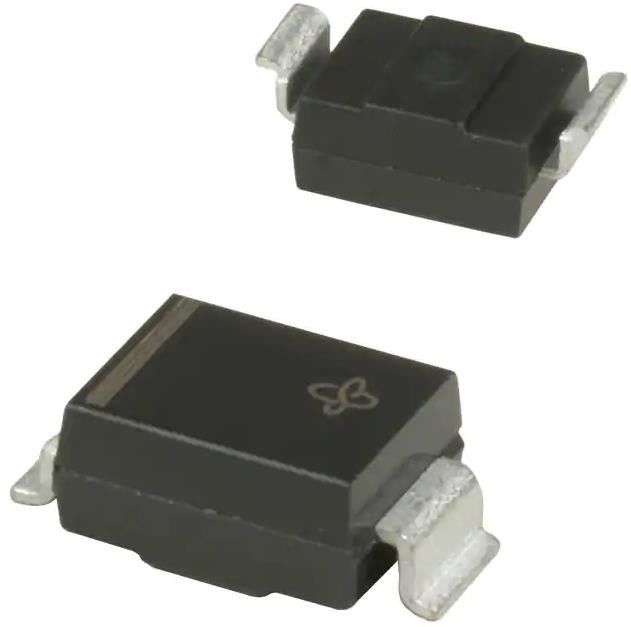

SMBG18CA-E3/52 29.2V Clamp 20.5A Ipp Tvs Diode Surface Mount SMBG (DO-215AA)
Specifications of SMBG18CA-E3/52
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Vishay General Semiconductor - Diodes Division |
| Series | TransZorb® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 18V |
| Voltage - Breakdown (Min) | 20V |
| Voltage - Clamping (Max) @ Ipp | 29.2V |
| Current - Peak Pulse (10/1000µs) | 20.5A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-215AA, SMB Gull Wing |
| Supplier Device Package | SMBG (DO-215AA) |
| Base Product Number | SMBG18 |
Features of SMBG18CA-E3/52
• Low profile package
• Ideal for automated placement
• Glass passivated chip junction
• Available in unidirectional and bidirectional
• 600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %
• Excellent clamping capability
• Very fast response time
• Low incremental surge resistance
• Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
• AEC-Q101 qualified
Applications of SMBG18CA-E3/52
Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Environmental & Export Classifications of SMBG18CA-E3/52
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
