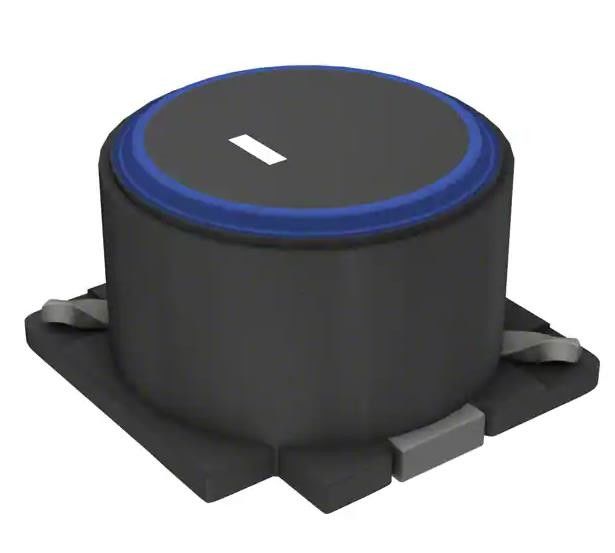

SLF12575T-470M2R7-H 47 µH Shielded Drum Core, Wirewound Inductor 2.7 A 63.36mOhm
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SLF12575T-470M2R7-H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Material - Core: | Ferrite | Inductance: | 47 µH |
|---|---|---|---|
| Tolerance: | ±20% | Current Rating (Amps): | 2.7 A |
| Current - Saturation (Isat): | 2.7 A | Shielding: | Shielded |
Product Description
SLF12575T-470M2R7-H 47 µH Shielded Drum Core, Wirewound Inductor 2.7 A 63.36mOhm
Specifications of SLF12575T-470M2R7-H
| TYPE | DESCRIPTION |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | TDK Corporation |
| Series | SLF-H |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.7 A |
| Current - Saturation (Isat) | 2.7A |
| Shielding | Shielded |
| DC Resistance (DCR) | 63.36mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.309" (7.85mm) |
Features of SLF12575T-470M2R7-H
* Magnetic shield type wound inductor for power circuits.
* Product lineup allows for various usages.
* Operating temperature range: –40 to +125°C (including self-temperature rise)
Applications of SLF12575T-470M2R7-H
* Automotive-related equipment (ECM, airbags, headlights, electronic power steering, meters, ABS, other)
* Application guides: Automotive (xEV)
Environmental & Export Classifications of SLF12575T-470M2R7-H
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.50.8000 |
