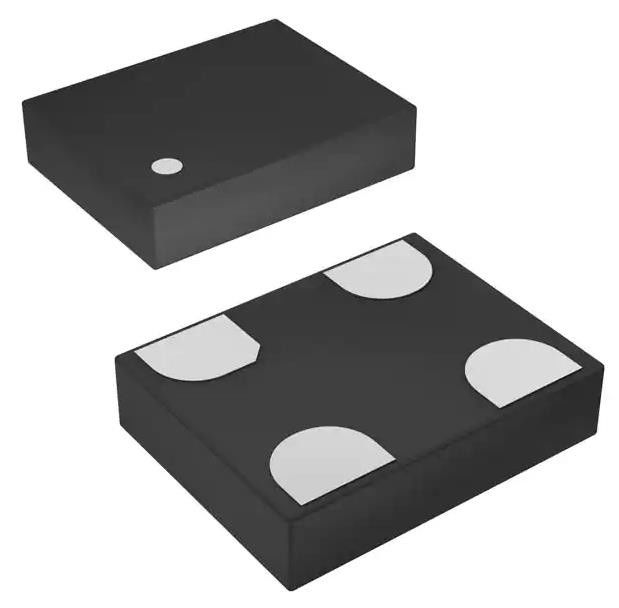

SIT1602AI-23-33E-50.000000E 50 MHz XO LVCMOS Oscillator 3.3V Enable/Disable 4-SMD
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SIT1602AI-23-33E-50.000000E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Base Resonator: | MEMS | Type: | XO (Standard) |
|---|---|---|---|
| Frequency: | 50 MHz | Function: | Enable/Disable |
| Output: | LVCMOS | Voltage - Supply: | 3.3V |
| Frequency Stability: | ±50ppm | Operating Temperature: | -40°C ~ 85°C |
Product Description
SIT1602AI-23-33E-50.000000E 50 MHz XO LVCMOS Oscillator 3.3V Enable/Disable 4-SMD
Specifications of SIT1602AI-23-33E-50.000000E
| TYPE | DESCRIPTION |
| Category | Crystals, Oscillators, Resonators |
| Oscillators | |
| Mfr | SiTime |
| Series | SiT1602 |
| Package | Strip |
| Base Resonator | MEMS |
| Type | XO (Standard) |
| Frequency | 50 MHz |
| Function | Enable/Disable |
| Output | LVCMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±50ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 4.5mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
Features of SIT1602AI-23-33E-50.000000E
* 51 standard frequencies between 3.75 MHz and 77.76 MHz
* 100% pin-to-pin drop-in replacement to quartz-based XO
* Excellent total frequency stability as low as ±20 PPM
* Low power consumption of 3.6 mA typical
* Standby mode for longer battery life
* Fast startup time of 5 ms
* LVCMOS/HCMOS compatible output
* Industry-standard packages: 2.0 x 1.6, 2.5 x 2.0, 3.2 x 2.5, 5.0 x 3.2, 7.0 x 5.0 mm x mm
* Instant samples with Time Machine II and field programmable oscillators
* Pb-free, RoHS and REACH compliant
Applications of SIT1602AI-23-33E-50.000000E
* Ideal for DSC, DVC, DVR, IP CAM, Tablets, e-Books, SSD GPON, EPON, etc
* Ideal for high-speed serial protocols such as: USB, SATA, SAS, Firewire, 100M / 1G / 10G Ethernet, etc.
Environmental & Export Classifications of SIT1602AI-23-33E-50.000000E
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
