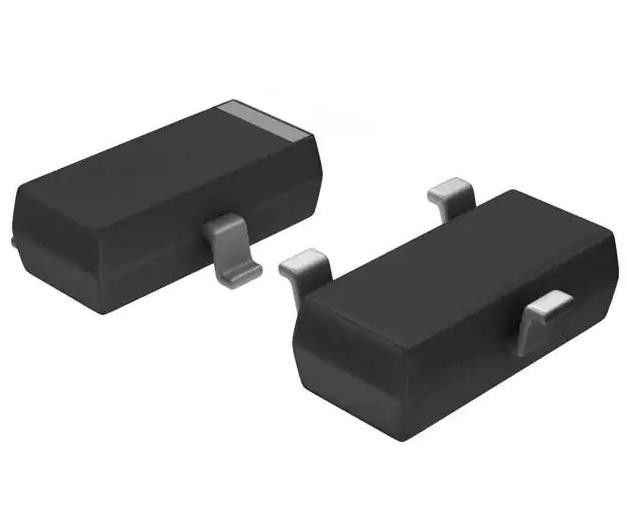

SI2308CDS-T1-GE3 N-Channel MOSFET 60 V 2.6A 1.6W Surface Mount SOT-23-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SI2308CDS-T1-GE3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| FET Type: | N-Channel | Technology: | MOSFET (Metal Oxide) |
|---|---|---|---|
| Drain To Source Voltage (Vdss): | 60 V | Current - Continuous Drain (Id) @ 25°C: | 2.6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On): | 4.5V, 10V | Rds On (Max) @ Id, Vgs: | 144mOhm @ 1.9A, 10V |
| Vgs(th) (Max) @ Id: | 3V @ 250µA | Gate Charge (Qg) (Max) @ Vgs: | 4 NC @ 10 V |
| High Light: | SOT-23-3 N-Channel MOSFET,SI2308CDS-T1-GE3 N-Channel MOSFET,Surface Mount N-Channel MOSFET |
||
Product Description
SI2308CDS-T1-GE3 N-Channel 60 V 2.6A 1.6W Surface Mount SOT-23-3
Specifications of SI2308CDS-T1-GE3
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Vishay Siliconix |
| Series | TrenchFET® Gen IV |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 2.6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 144mOhm @ 1.9A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 4 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 105 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.6W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | SI2308 |
Features of SI2308CDS-T1-GE3
• TrenchFET® Gen IV power MOSFET
• 100 % Rg tested
Applications of SI2308CDS-T1-GE3
• Battery switch
• DC/DC converter
• Load switch
Environmental & Export Classifications of SI2308CDS-T1-GE3
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
