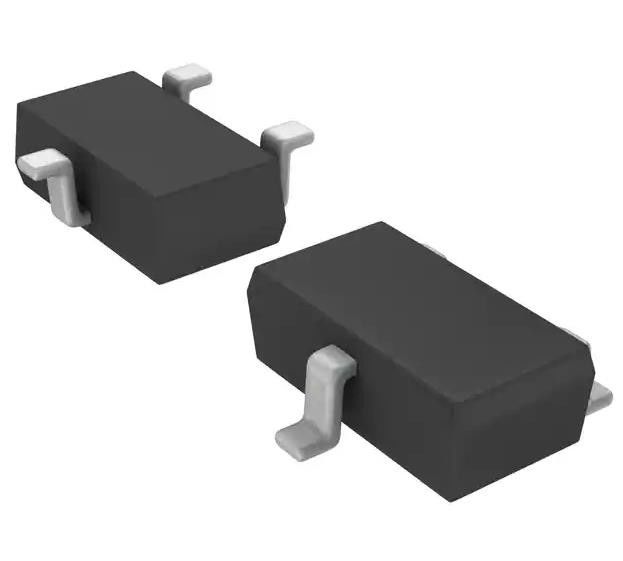

RSR010N10TL N-Channel MOSFET 100 V 1A (Ta) 540mW (Ta) Surface Mount TSMT3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | RSR010N10TL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| FET Type: | N-Channel | Drain To Source Voltage (Vdss): | 100V |
|---|---|---|---|
| Current - Continuous Drain (Id) @ 25°C: | 1A (Ta) | Drive Voltage (Max Rds On, Min Rds On): | 4V, 10V |
| Rds On (Max) @ Id, Vgs: | 520mOhm @ 1A, 10V | Vgs(th) (Max) @ Id: | 2.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs: | 3.5 NC @ 5 V | Vgs (Max): | ±20V |
| High Light: | RSR010N10TL N-Channel MOSFET,Surface Mount N-Channel MOSFET,RSR010N10TL |
||
Product Description
RSB16VTE-17 Clamp Ipp Tvs Diode Surface Mount UMD2 Electronic Components
Specifications of RSR010N10TL
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Rohm Semiconductor |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 1A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 520mOhm @ 1A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 3.5 nC @ 5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 140 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 540mW (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TSMT3 |
| Package / Case | SC-96 |
| Base Product Number | RSR010 |
Environmental & Export Classifications of RSR010N10TL
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.21.0095 |
