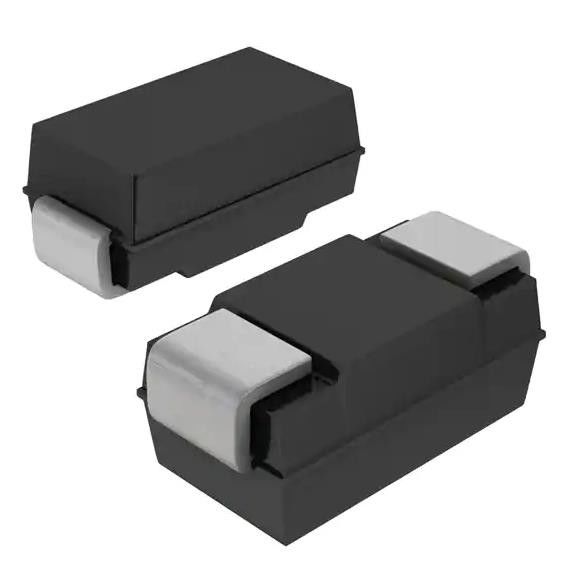

RF101L2STE25 Diode 200 V 1A Surface Mount PMDS Electronic Components
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | RF101L2STE25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - DC Reverse (Vr) (Max): | 200 V | Current - Average Rectified (Io): | 1A |
|---|---|---|---|
| Voltage - Forward (Vf) (Max) @ If: | 870 MV @ 1 A | Speed: | Fast Recovery =< 500ns, > 200mA (Io) |
| Fast Recovery =< 500ns, > 200mA (Io): | 25 Ns | Current - Reverse Leakage @ Vr: | 10 µA @ 200 V |
| Mounting Type: | Surface Mount | Supplier Device Package: | PMDS |
| High Light: | Diode 200 V 1A Electronic Components,RF101L2STE25 Electronic Components,PMDS Electronic Components |
||
Product Description
RF101L2STE25 Diode 200 V 1A Surface Mount PMDS Electronic Components
Specifications of RF101L2STE25
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Rohm Semiconductor |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 870 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 25 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | PMDS |
| Operating Temperature - Junction | 150°C (Max) |
| Base Product Number | RF101 |
Features of RF101L2STE25
1)Small power mold type. (PMDS)
2)Ultra low VF
3)Ultra high switching speed
4)Low switching loss
Applications of RF101L2STE25
General rectification
Environmental & Export Classifications of RF101L2STE25
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
