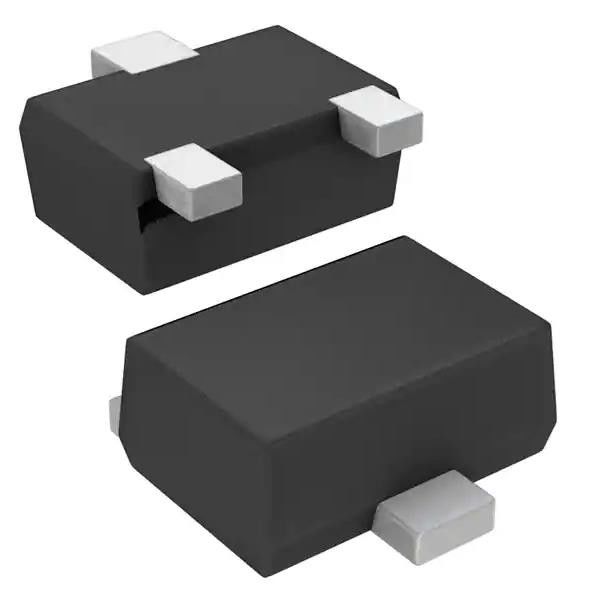

RE1C001ZPTL P-Channel MOSFET 20 V 100mA (Ta) 150mW (Ta) Surface Mount EMT3F SOT-416FL
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | RE1C001ZPTL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| FET Type: | P-Channel | Technology: | MOSFET (Metal Oxide) |
|---|---|---|---|
| Drain To Source Voltage (Vdss): | 20 V | Current - Continuous Drain (Id) @ 25°C: | 100mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On): | 1.2V, 4.5V | Rds On (Max) @ Id, Vgs: | 3.8Ohm @ 100mA, 4.5V |
| Vgs(th) (Max) @ Id: | 1V @ 100µA | Vgs (Max): | ±10V |
| High Light: | RE1C001ZPTL P-Channel MOSFET,P-Channel MOSFET 20 V 100mA,RE1C001ZPTL |
||
Product Description
RE1C001ZPTL P-Channel 20 V 100mA (Ta) 150mW (Ta) Surface Mount EMT3F (SOT-416FL)
Specifications of RE1C001ZPTL
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Rohm Semiconductor |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.2V, 4.5V |
| Rds On (Max) @ Id, Vgs | 3.8Ohm @ 100mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 100µA |
| Vgs (Max) | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 15 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 150mW (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | EMT3F (SOT-416FL) |
| Package / Case | SC-89, SOT-490 |
| Base Product Number | RE1C001 |
Environmental & Export Classifications of RE1C001ZPTL
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.21.0095 |
