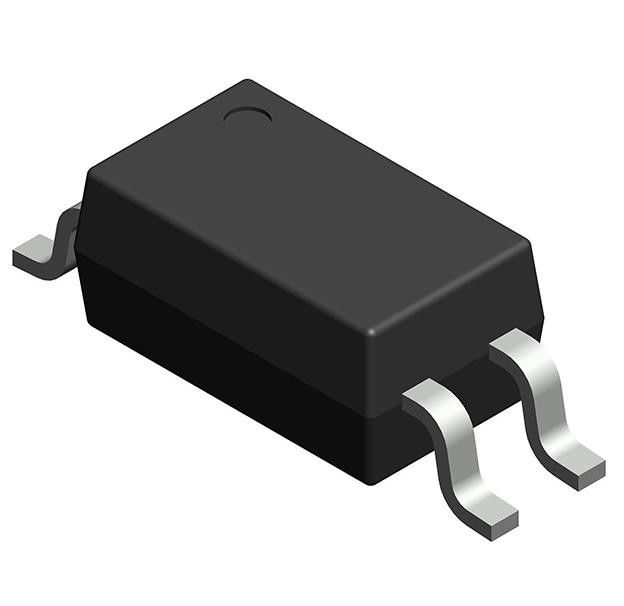

PS2833-1-F3-A Optoisolator Darlington Output 2500Vrms 1 Channel 4-SSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PS2833-1-F3-A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Channels: | 1 | Voltage - Isolation: | 2500Vrms |
|---|---|---|---|
| Current Transfer Ratio (Min): | 400% @ 1mA | Current Transfer Ratio (Max): | 4500% @ 1mA |
| Rise / Fall Time (Typ): | 20µs, 5µs | Output Type: | Darlington |
| Voltage - Output (Max): | 350V | Current - Output / Channel: | 60mA |
| High Light: | 2500Vrms Optoisolator Darlington,1 Channel Optoisolator Darlington,PS2833-1-F3-A |
||
Product Description
PS2833-1-F3-A Optoisolator Darlington Output 2500Vrms 1 Channel 4-SSOP
Specifications of PS2833-1-F3-A
| TYPE | DESCRIPTION |
| Category | Isolators |
| Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Mfr | Renesas Electronics America Inc |
| Series | NEPOC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | 400% @ 1mA |
| Current Transfer Ratio (Max) | 4500% @ 1mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 20µs, 5µs |
| Input Type | DC |
| Output Type | Darlington |
| Voltage - Output (Max) | 350V |
| Current - Output / Channel | 60mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 1V |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOIC (0.173", 4.40mm Width) |
| Supplier Device Package | 4-SSOP |
| Base Product Number | PS2833 |
Features of PS2833-1-F3-A
• High collector to emitter voltage (VCEO = 350 V: PS2833-1, -4)
• Small and thin package (4, 16-pin SSOP, Pin pitch 1.27 mm)
• High isolation voltage (BV = 2 500 Vr.m.s.)
• High current transfer ratio (CTR = 2 000% TYP.)
• Ordering number of tape product: PS2833-1-F3, PS2833-4-F3
• Safety standards:
• UL approved: UL1577, Single protection
• CSA approved: CAN/CSA-C22.2 No. 62368-1, Basic insulation
• VDE approved: DIN EN 60747-5-5 (Option)
Description of PS2833-1-F3-A
• Hybrid IC
• Telephone/Telegraph Receiver
• FAX
Environmental & Export Classifications of PS2833-1-F3-A
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
