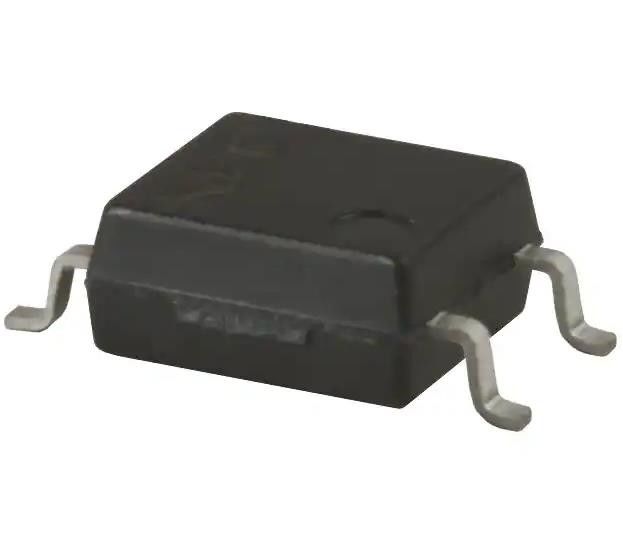

PS2701-1-F3 Optoisolator Transistor Output 3750Vrms 1 Channel 4-SMD
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PS2701-1-F3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Channels: | 1 | Voltage - Isolation: | 3750Vrms |
|---|---|---|---|
| Current Transfer Ratio (Min): | 50% @ 5mA | Current Transfer Ratio (Max): | 300% @ 5mA |
| Rise / Fall Time (Typ): | 3µs, 5µs | Output Type: | Transistor |
| Voltage - Output (Max): | 40V | Current - Output / Channel: | 80mA |
| High Light: | PS2701-1-F3 Optoisolator Transistor,4-SMD Optoisolator Transistor,1 Channel Optoisolator Transistor |
||
Product Description
PS2701-1-F3 Optoisolator Transistor Output 3750Vrms 1 Channel 4-SMD
Specifications of PS2701-1-F3
| TYPE | DESCRIPTION |
| Category | Isolators |
| Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Mfr | CEL |
| Series | NEPOC |
| Package | Tape & Reel (TR) |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Current Transfer Ratio (Max) | 300% @ 5mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 3µs, 5µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 40V |
| Current - Output / Channel | 80mA |
| Voltage - Forward (Vf) (Typ) | 1.1V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SMD |
Features of PS2701-1-F3
• HIGH ISOLATION VOLTAGE BV: 3.75 k Vr.m.s.
• SOP (SMALL OUT-LINE PACKAGE)
• ISOLATED CHANNELS PER EACH PACKAGE
• HIGH SPEED SWITCHING tr = 3 µs TYP, tf = 5 µs TYP
• LOW COLLECTOR DARK CURRENT ICEO: 5 nA TYP @ TA = 25 °C, VCE = 40 V
• TAPE AND REEL AVAILABLE
Description of PS2701-1-F3
• AC LINE/DIGITAL LOGIC
• DIGITAL LOGIC INTERFACE
• TWISTED PAIR LINE RECEIVER
• TELEPHONE/TELEGRAPH LINE RECEIVER
• HIGH FREQUENCY POWER SUPPLY FEEDBACK CONTROL
• RELAY CONTACT MONITOR
• POWER SUPPLY MONITOR
Environmental & Export Classifications of PS2701-1-F3
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
