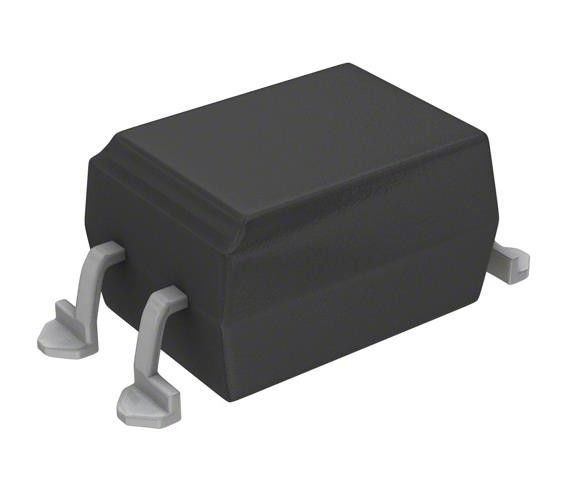

PC817XNNIP1B Optoisolator Transistor Output 1 Electronic IC Chips Channel 4-SMD
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PC817XNNIP1B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Rise / Fall Time (Typ): | 4µs, 3µs | Input Type: | DC |
|---|---|---|---|
| Output Type: | Transistor | Voltage - Output (Max): | 80V |
| Current - Output / Channel: | 50mA | Voltage - Forward (Vf) (Typ): | 1.2V |
| Current - DC Forward (If) (Max): | 50 MA | Vce Saturation (Max): | 200mV |
| High Light: | PC817XNNIP1B Electronic IC Chips,4-SMD Electronic IC Chips,PC817XNNIP1B Optoisolator Transistor |
||
Product Description
PC817XNNIP1B Optoisolator Transistor Output 1 Electronic IC Chips Channel 4-SMD
Specifications of PC817XNNIP1B
| TYPE | DESCRIPTION |
| Category | Isolators |
| Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Mfr | SHARP/Socle Technology |
| Series | - |
| Package | Tape & Reel (TR) |
| Number of Channels | 1 |
| Voltage - Isolation | - |
| Current Transfer Ratio (Min) | - |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SMD |
Environmental & Export Classifications of PC817XNNIP1B
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
