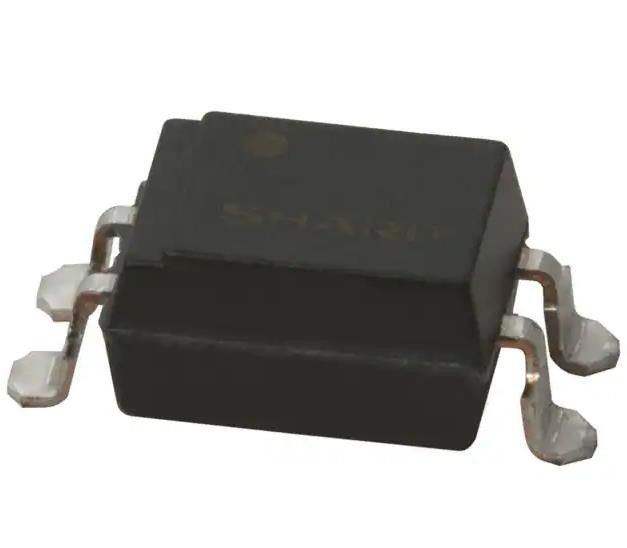

PC123X2YIP0F Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PC123X2YIP0F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Channels: | 1 | Voltage - Isolation: | 5000Vrms |
|---|---|---|---|
| Current Transfer Ratio (Min): | 100% @ 5mA | Current Transfer Ratio (Max): | 250% @ 5mA |
| Rise / Fall Time (Typ): | 4µs, 3µs | Output Type: | Transistor |
| Voltage - Output (Max): | 70V | Current - Output / Channel: | 50mA |
| High Light: | 5000Vrms Optoisolator Transistor,PC123X2YIP0F,PC123X2YIP0F Optoisolator Transistor |
||
Product Description
PC123X2YIP0F Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
Specifications of PC123X2YIP0F
| TYPE | DESCRIPTION |
| Category | Isolators |
| Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Mfr | Sharp Microelectronics |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 100% @ 5mA |
| Current Transfer Ratio (Max) | 250% @ 5mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 70V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SMD |
Features of PC123X2YIP0F
* Safety limit values
- Current (Isi) 200mA(Diode side)
- Power (Psi) 300mW (Phototransistor side)
- Temperature (Isi) 150C
Descriptions of PC123X2YIP0F
This specification applies to the oufline and characteristics of photocoupler Model No, PC123(Lead-Free Type).
Environmental & Export Classifications of PC123X2YIP0F
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
