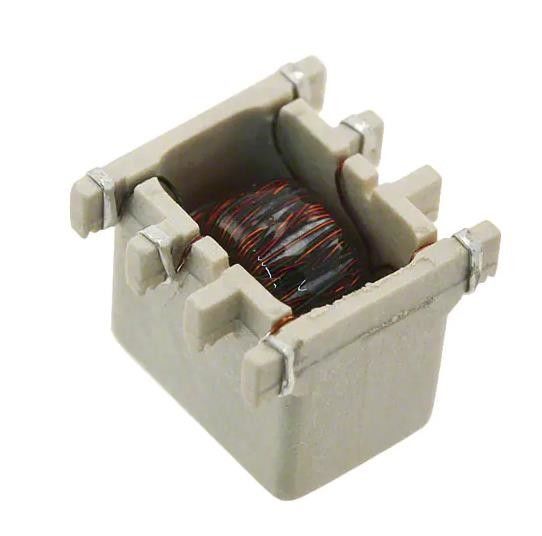

P0544NLT 3.3mH Pulse Electronic Components Transformer 1:1:1 Surface Mount
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | P0544NLT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Inductance: | 3.3mH | ET (Volt-Time): | 45.1VµS |
|---|---|---|---|
| Turns Ratio - Primary:Secondary: | 1:01:01 | Mounting Type: | Surface Mount |
| Size / Dimension: | 0.355" L X 0.340" W (9.02mm X 8.64mm) | Height - Seated (Max): | 0.300" (7.62mm) |
| Operating Temperature: | -40°C ~ 130°C | Package: | Tape & Reel (TR) |
| High Light: | P0544NLT Electronic Components,Surface Mount Electronic Components,3.3mH Electronic Components |
||
Product Description
P0544NLT 3.3mH Pulse Electronic Components Transformer 1:1:1 Surface Mount
Specifications of P0544NLT
| TYPE | DESCRIPTION |
| Category | Transformers |
| Pulse Transformers | |
| Mfr | Pulse Electronics |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Transformer Type | - |
| Inductance | 3.3mH |
| ET (Volt-Time) | 45.1VµS |
| Turns Ratio - Primary:Secondary | 1:01:01 |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.355" L x 0.340" W (9.02mm x 8.64mm) |
| Height - Seated (Max) | 0.300" (7.62mm) |
| Operating Temperature | -40°C ~ 130°C |
Features of P0544NLT
* >1500VDC isolation (380Vrms continuous)
* Basic insulation (1.4mm creepage/ clearance) and functional available
* Operating frequency: 50kHz and up
Environmental & Export Classifications of P0544NLT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.2000 |
