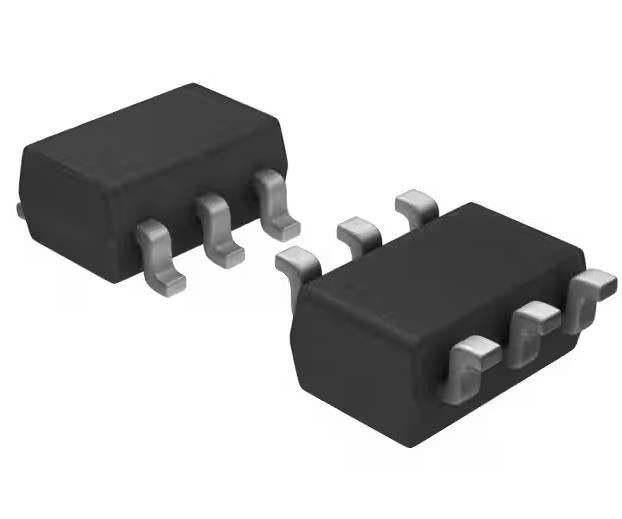

OPA691IDBVR Electronic IC Chips Current Feedback Amplifier 1 Circuit SOT-23-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | OPA691IDBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Amplifier Type: | Current Feedback | Number Of Circuits: | 1 |
|---|---|---|---|
| -3db Bandwidth: | 280 MHz | Slew Rate: | 2100V/µs |
| Gain Bandwidth Product: | 2 GHz | Current - Input Bias: | 15 µA |
| Voltage - Input Offset: | 500 µV | Output / Channelt: | 5.1mA |
| High Light: | SOT-23-6 Electronic IC Chips,Current Feedback Amplifier IC Chips,OPA691IDBVR Electronic IC Chips |
||
Product Description
OPA691IDBVR Electronic IC Chips Current Feedback Amplifier 1 Circuit SOT-23-6
Specifications of OPA691IDBVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Package | Tape & Reel (TR) |
| Amplifier Type | Current Feedback |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | 2100V/µs |
| Gain Bandwidth Product | 2 GHz |
| -3db Bandwidth | 280 MHz |
| Current - Input Bias | 15 µA |
| Voltage - Input Offset | 500 µV |
| Current - Supply | 5.1mA |
| Current - Output / Channel | 190 mA |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 12 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| Base Product Number | OPA691 |
Features of OPA691IDBVR
● FLEXIBLE SUPPLY RANGE:
+5V to +12V Single-Supply
±2.5V to ±6V Dual-Supply
● UNITY-GAIN STABLE: 280MHz (G = 1)
● HIGH OUTPUT CURRENT: 190mA
● OUTPUT VOLTAGE SWING: ±4.0V
● HIGH SLEW RATE: 2100V/µs
● LOW dG/dφ: 0.07%/0.02°
● LOW SUPPLY CURRENT: 5.1mA
● LOW DISABLED CURRENT: 150µA
● WIDEBAND +5V OPERATION: 190MHz (G = +2)
Descriptions of OPA691IDBVR
● xDSL LINE DRIVER
● BROADBAND VIDEO BUFFERS
● HIGH-SPEED IMAGING CHANNELS
● PORTABLE INSTRUMENTS
● ADC BUFFERS
● ACTIVE FILTERS
● WIDEBAND INVERTING SUMMING
● HIGH SFDR IF AMPLIFIER
Environmental & Export Classifications of OPA691IDBVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
