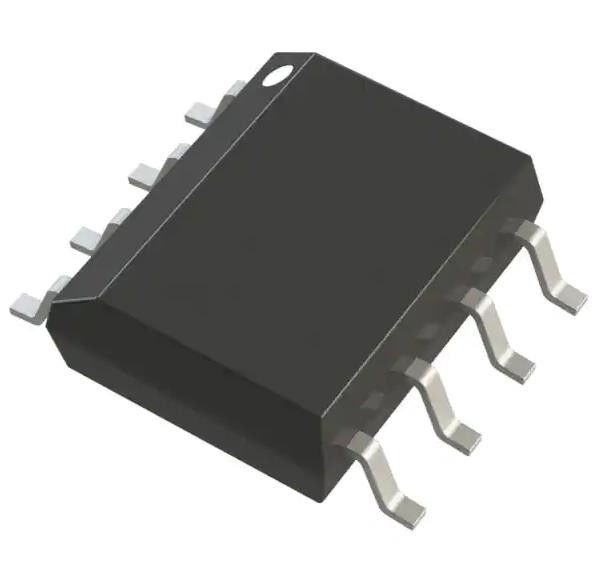

OP284ESZ-REEL7 General Purpose Amplifier IC 2 Circuit Rail-to-Rail 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | OP284ESZ-REEL7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Amplifier Type: | General Purpose | Number Of Circuits: | 2 |
|---|---|---|---|
| Output Type: | Rail-to-Rail | Slew Rate: | 4V/µs |
| Gain Bandwidth Product: | 4.25 MHz | Current - Input Bias: | 80 NA |
| Voltage - Input Offset: | 100 µV | Output / Channelt: | 10 MA |
| High Light: | 8-SOIC General Purpose Amplifier,Rail-to-Rail General Purpose Amplifier,OP284ESZ-REEL7 General Purpose Amplifier IC |
||
Product Description
OP284ESZ-REEL7 General Purpose Amplifier 2 Circuit Rail-to-Rail 8-SOIC
Specifications of OP284ESZ-REEL7
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 4V/µs |
| Gain Bandwidth Product | 4.25 MHz |
| Current - Input Bias | 80 nA |
| Voltage - Input Offset | 100 µV |
| Current - Supply | - |
| Current - Output / Channel | 10 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | OP284 |
Features of OP284ESZ-REEL7
* Single-supply operation
* Wide bandwidth: 4 MHz
* Low offset voltage: 65 μV
* Unity-gain stable
* High slew rate: 4.0 V/μs
* Low noise: 3.9 nV/√Hz
Descriptions of OP284ESZ-REEL7
* Battery-powered instrumentation
* Power supply control and protection
* Telecommunications
* DAC output amplifier
* ADC input buffer
Environmental & Export Classifications of OP284ESZ-REEL7
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
