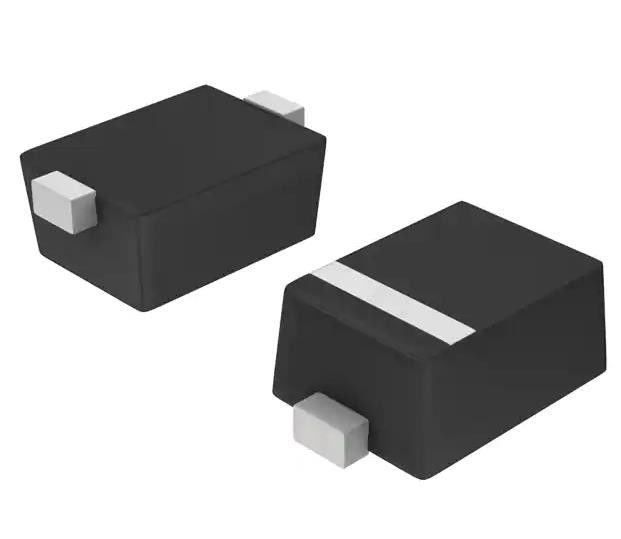

NZ9F3V3ST5G Zener Diode 3.3 V 250 mW ±3% Surface Mount SOD-923
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NZ9F3V3ST5G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Zener (Nom) (Vz): | 3.3 V | Tolerance: | ±3% |
|---|---|---|---|
| Power - Max: | 250 MW | Impedance (Max) (Zzt): | 100 Ohms |
| Current - Reverse Leakage @ Vr: | 10 µA @ 1 V | Voltage - Forward (Vf) (Max) @ If: | 900 MV @ 10 MA |
| Operating Temperature: | -65°C ~ 150°C (TJ) | Mounting Type: | Surface Mount |
| High Light: | SOD-923 Zener Diode,NZ9F3V3ST5G Zener Diode,NZ9F3V3ST5G |
||
Product Description
NZ9F3V3ST5G Zener Diode 3.3 V 250 mW ±3% Surface Mount SOD-923
Specifications of NZ9F3V3ST5G
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Zener | |
| Single Zener Diodes | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Voltage - Zener (Nom) (Vz) | 3.3 V |
| Tolerance | ±3% |
| Power - Max | 250 mW |
| Impedance (Max) (Zzt) | 100 Ohms |
| Current - Reverse Leakage @ Vr | 10 µA @ 1 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-923 |
| Supplier Device Package | SOD-923 |
| Base Product Number | NZ9F3 |
Features of NZ9F3V3ST5G
• Standard Zener Breakdown Voltage Range −2.4 V to 18 V
• Steady State Power Rating of 250 mW
• Small Body Outline Dimensions: 0.039″ x 0.024″ (1.00 mm x 0.60 mm)
• Low Body Height: 0.016″ (0.40 mm)
• ESD Rating of Class 3 (>16 kV) per Human Body Model
• Tight Tolerance VZ
• SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These are Pb−Free Devices
Descriptions of NZ9F3V3ST5G
This series of Zener diodes is packaged in a SOD−923 surface mount package. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.
Environmental & Export Classifications of NZ9F3V3ST5G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0050 |
