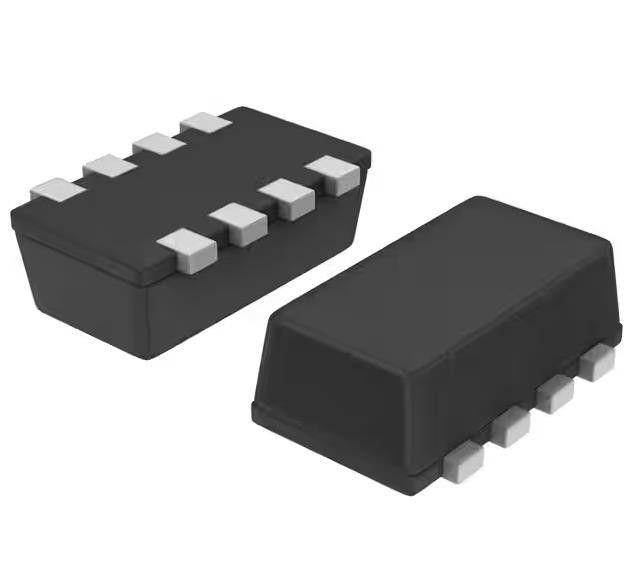

NTHS5404T1G N-Channel MOSFET 20 V 5.2A (Ta) 1.3W (Ta) Surface Mount ChipFET™
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NTHS5404T1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| FET Type: | N-Channel | Drain To Source Voltage (Vdss): | 20 V |
|---|---|---|---|
| Current - Continuous Drain (Id) @ 25°C: | 5.2A (Ta) | Drive Voltage (Max Rds On, Min Rds On): | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs: | 30mOhm @ 5.2A, 4.5V | Vgs(th) (Max) @ Id: | 600mV @ 250µA (Min) |
| Gate Charge (Qg) (Max) @ Vgs: | 18 NC @ 4.5 V | Vgs (Max): | ±12V |
| High Light: | NTHS5404T1G N-Channel MOSFET,Surface Mount N-Channel MOSFET,N-Channel MOSFET 20 V 5.2A |
||
Product Description
NSVT45010MW6T1G Bipolar Transistor Array 2 PNP (Dual) 45V 100mA 100MHz 380mW
Specifications of NTHS5404T1G
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 5.2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 5.2A, 4.5V |
| Vgs(th) (Max) @ Id | 600mV @ 250µA (Min) |
| Gate Charge (Qg) (Max) @ Vgs | 18 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| FET Feature | - |
| Power Dissipation (Max) | 1.3W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | ChipFET™ |
| Package / Case | 8-SMD, Flat Lead |
| Base Product Number | NTHS5404 |
Features of NTHS5404T1G
• Low RDS(on) for Higher Efficiency
• Logic Level Gate Drive
• Miniature ChipFET Surface Mount Package Saves Board Space
• Pb−Free Package is Available
Descriptions of NTHS5404T1G
• Power Management in Portable and Battery−Powered Products; i.e., Cellular and Cordless Telephones and PCMCIA Cards
Environmental & Export Classifications of NTHS5404T1G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
