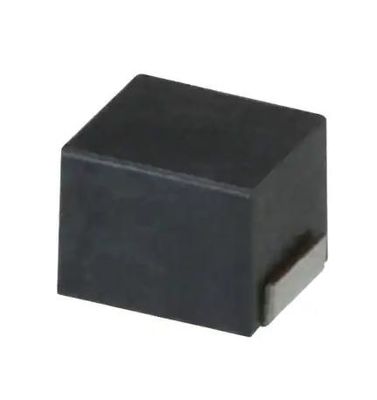

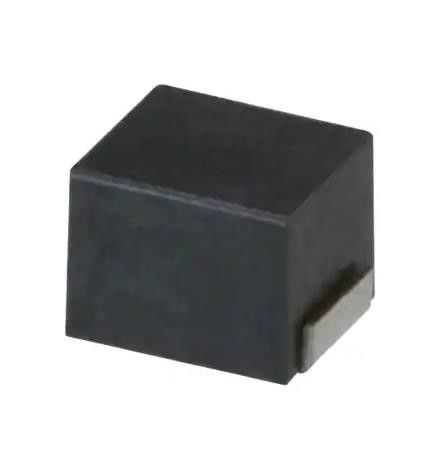

NLV25T-1R0J-PF 1 µH Unshielded Drum Core Wirewound Inductor 245 mA 1.1Ohm Max
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NLV25T-1R0J-PF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Material - Core: | Ferrite | Inductance: | 1 µH |
|---|---|---|---|
| Tolerance: | ±5% | Current Rating (Amps): | 245 MA |
| Shielding: | Unshielded | DC Resistance (DCR): | 1.1Ohm Max |
| Q @ Freq: | 30 @ 7.96MHz | Frequency - Self Resonant: | 245MHz |
| High Light: | 1 µH Drum Core Wirewound Inductor,Unshielded Drum Core Wirewound Inductor,NLV25T-1R0J-PF |
||
Product Description
NLV25T-1R0J-PF 1 µH Unshielded Drum Core Wirewound Inductor 245 mA 1.1Ohm Max
Specifications of NLV25T-1R0J-PF
| TYPE | DESCRIPTION |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | TDK Corporation |
| Series | NLV-PF |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 245 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.1Ohm Max |
| Q @ Freq | 30 @ 7.96MHz |
| Frequency - Self Resonant | 245MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.075" (1.90mm) |
Features of NLV25T-1R0J-PF
* Resin mold type wound inductor for standard circuits.
* E-12 Series, wide lineup compatible with J (±5%) tolerance, can be used for applications that need to meet strict L tolerance such as filter circuits.
* Has excellent inductance temperature characteristics in the operating temperature range.
Descriptions of NLV25T-1R0J-PF
Smart meters, AV equipment, xDSL, electronic devices for communications infrastructure such as mobile base stations, industrial equipment, other
Environmental & Export Classifications of NLV25T-1R0J-PF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8504.50.8000 |
